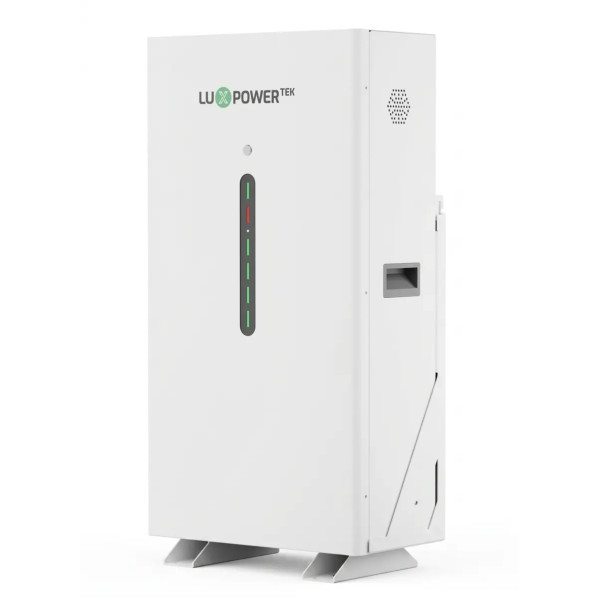

LuxPower PGEM PRO Lithium Battery 14.3kWh - 51.2V
Lithium Battery (LFP) PGEM PRO of the manufacturer LuxPower of 14.3 kWh capacity (280Ah at 51.2V) and 8000 cycles of useful life, ideal for solar energy applications, both in its version for photovoltaic self-consumption with storage, as well as for off-grid solar installations.
Dimensions: 900x475x238 mm
Weight: 115 kg
Secure payment
Shipping policy
Return policy
PGEM PRO Lithium Battery 14.3kWh - 51.2V
The PGEM PRO Lithium Iron Phosphate (LiFePO4) or (LFP) battery of 14.3 kWh from LuxPower is ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.
Compatible with Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Solark, SRNE, Must inverters... parallel connection capacity up to 32 units. Easy installation thanks to its quick connections to reduce installation times.
Advantages of LFP Technology
It has a long and extended lifespan, around 8,000 cycles and approximately 10 years, with the manufacturer guaranteeing more than 70% of useful capacity at the beginning. They are easy to expand to obtain large storage; increased depth of discharge (90% DOD); compact and modular design that allows for easy installation/updating; ability to operate in different temperature conditions; advanced BMS that allows real-time alarm reporting.
PGEM PRO Capacity
The energy capacity of each of these modules is 14.3kWh. Thanks to its format, up to 32 units can be connected in parallel, reaching a staggering 457.6kWh of energy storage capacity.
Battery Interface
The interface presented by LuxPower with the PGEM PRO is intuitive and easy to connect.
PGEM PRO Battery Technical Specifications by LuxPower 51.2V 14.3kWh
| MODEL | PGEM PRO |
| Cell | LFP |
| Nominal Power | 14.3kWh |
| Nominal Capacity | 280Ah |
|
Nominal Voltage |
51.2V |
| Maximum charge/discharge | 140A |
| Maximum number of parallels | 32 |
| Communication | CAN/RS485 |
| Certifications | CE UN38.3 IEC62619 |
| Protection |
Overcharge, overdischarge, overcurrent, overvoltage, and overtemperature protection. Short circuit protection, reverse connection protection, load balancing, low state of charge (SOC) protection |
Manufacturer's Warranty
For LuxPower batteries, we guarantee that the manufacturer ensures at least 70% of the initial usable energy capacity after 10 years of use or 8,000 cycles, whichever comes first.
Downloads
PGEM PRO Lithium Battery Technical Datasheet 14.3kWh - 51.2V
Download PGEM PRO Lithium Battery User Manual 14.3kWh - 51.2V
BAT-HNE-PGP-14.3
Lithium Battery (LFP) PGEM PRO of the manufacturer LuxPower of 14.3 kWh capacity (280Ah at 51.2V) and 8000 cycles of useful life, ideal for solar energy applications, both in its version for photovoltaic self-consumption with storage, as well as for off-grid solar installations.
Dimensions: 900x475x238 mm
Weight: 115 kg
