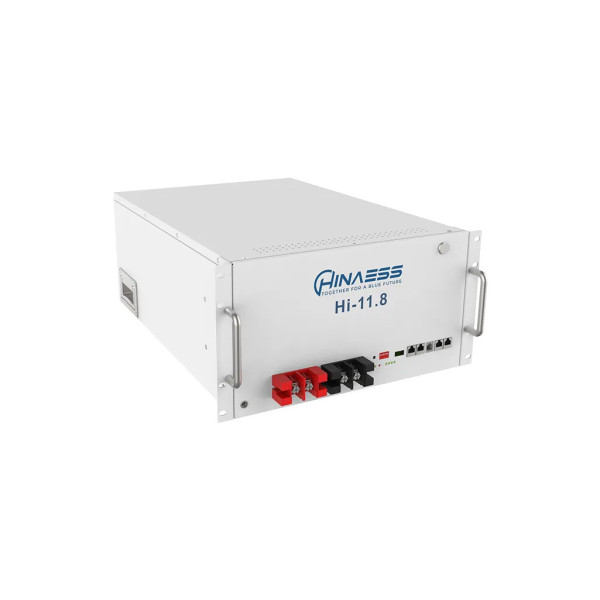

Hi-11.8 HinaESS Lithium Battery 11.776kWh - 51.2V html Copiar Editar

Hi-11.8 HinaESS Lithium Battery 11.776kWh - 51.2V html Copiar Editar

Hi-11.8 Lithium Battery (LFP) from manufacturer HinaESS with a capacity of 11.776kWh (230Ah at 51.2V) and 6000 life cycles, ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.

Dimensions: 396 x 600 x 229mm

Weight: 81 kg

BAT-HNE-HI-11,8
€2,287.00
€2,104.04  Save 8%
Tax included
In stock



Secure payment



Shipping policy



Return policy

Hi-11.8 HinaESS Lithium Battery 11.776kWh - 51.2V

Hi-11.8 Lithium Battery (LFP) from manufacturer HinaESS with a capacity of 11.776kWh (230Ah at 51.2V) and 6000 life cycles, ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.

This modular 11.776kWh battery can be expanded up to 32 units without the need for any additional equipment and is compatible with most solar inverters on the market. It features self-addressing to facilitate parallel connection.

Inverters compatible with the HinaESS Hi-11.8 battery

Compatible with Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Solark, SRNE, Must, and many more inverters. Parallel connection capability of up to 32 units without additional devices, and up to 100 units with a hub. Easy installation thanks to quick connections and self-addressing.

 List of inverters compatible with HinaESS Hi-11.8 battery

Battery capacity of the HinaESS Hi-11.8

Each of these modules provides a storage capacity of 11.776kWh. Thanks to its format and self-addressing technology, up to 32 units can be connected in parallel without additional equipment, and up to 100 units with a hub, offering exceptional scalability for large-scale energy storage systems.

Advantages of LFP technology and additional features

It offers a long lifespan of about 6,000 cycles (at 90% DOD and 0.5C tested at 25°C) and comes with approximately 10 years of warranty. Easy to expand for large-scale storage; increased depth of discharge (90% DOD). Compact and modular design enables easy installation and upgrades. Capable of operating in a wide temperature range (-20°C to +55°C). Includes an advanced BMS for real-time alarms, smart management for extended lifespan, and enhanced protection for robust applications. Optional heating and fire suppression system for extreme climates.

Technical specifications of the HinaESS Hi-11.8 51.2V 11.776kWh battery

MODEL HI-11.8
Cell LFP
Rated Power 11.776kWh
Rated Capacity 230Ah

Rated Voltage

 51.2V
Max. continuous charge current 100A
Max. continuous discharge current 100A
Max. number of parallel units 32 (no additional equipment), 100 (with hub)
Communication CAN/RS485
Certifications CE UN38.3 IEC62619
Protection

Protection against overcharge, over-discharge, overcurrent, overvoltage, and overtemperature. Short-circuit protection, reverse polarity protection, charge balancing, low SOC protection. Self-addressing and enhanced safety.
Operating humidity 5%-85% RH (non-condensing)
Operating temperature -20°C ~ +55°C
Depth of Discharge (DOD) 90%
Remote maintenance Flexible remote updates. Original firmware backup to prevent update failures.

DOWNLOADS

Datasheet - HinaESS Hi-11.8 11.776kWh - 51.2V Lithium Battery

Download User Manual - Hi-11.8 HinaESS 11.776kWh - 51.2V Lithium Battery

Download Warranty Conditions - HinaESS Hi-11.8

BAT-HNE-HI-11,8
