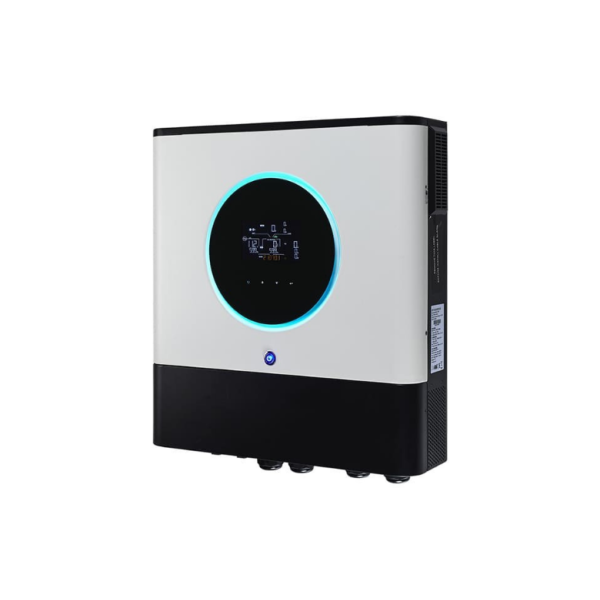

Voltronic Axpert VM II ELITE 6KP | Off-grid Inverter 6000W 48V 120A

Voltronic Axpert VM II ELITE 6KP 6000W 48V Off-grid Inverter

Voltronic Axpert VM II ELITE 6KP. New solar inverter with 6000VA/6000W and 48V. This multifunctional device combines inverter, solar charger, and battery charger functions, offering uninterruptible power support. It includes Wi-Fi functionality for mobile monitoring via the app.

The inverter is designed to operate with a wide PV input voltage range and features a BMS communication port, as well as a built-in pre-charge circuit to reduce inrush current.

Technical Datasheet Voltronic Axpert VM II ELITE 6KP 6000W 48V

Technical Specifications of Axpert VM II ELITE 6KP 6000W-48V Inverter for Off-grid Installations

MODEL: Axpert VM II ELITE 6KP

INPUT

• Voltage: 230 VAC
• Selectable Voltage Range: 170-280 VAC (For PCs); 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 230 VAC ± 5%
• Efficiency (Peak): 0.93
• Transfer Time: 10 ms (For PCs); 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave

BATTERY

• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 63 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger Type: MPPT
• Maximum PV Array Open Circuit Voltage: 500 VDC
• Maximum PV Array Power: 10000W
• MPPT Range @ Operating Voltage: 60 - 450 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 100A
• Maximum Charging Current: 120A
• Maximum PV Input Current: 27A

PHYSICAL

• Dimensions, D x W x H (mm): 144 x 348 x 446
• Net Weight (kg): 12.5
• Communication Interface: RS485/CAN/WiFi

OPERATING ENVIRONMENT

• Operating Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10℃ to 50℃
• Storage Temperature: -15℃ to 60℃

MPPT with Wide Voltage Range and High Charge Current

The Axpert VM II ELITE 6KP inverter features an MPPT solar controller with a wide operating voltage range of 60 to 450 VDC and a maximum solar charge current of 120A. It supports a maximum PV array power of 10000W and a maximum PV input current of 27A. This enables efficient energy harvesting from solar panels.

Integrated 100A AC Charger for Backup

This hybrid inverter includes a 100-amp battery charger, allowing fast battery charging from an AC power source (grid or generator) during periods of low solar production. It is important that the generator is a low harmonic distortion (inverter) type for optimal performance.

LCD Display and Advanced Connectivity for Monitoring

The Axpert VM II ELITE 6KP comes with an LCD display for easy monitoring of system data such as solar panel voltage and power, consumption, and various settings and priorities. It includes RS485, CAN, and WiFi communication ports for remote monitoring via a mobile app and OTA firmware updates.

Key features include dual AC input/output, wide PV input voltage range, BMS communication port, pre-charge circuit, reverse battery polarity protection, low noise and idle consumption, integrated DC PV switch, and meter calibration function.

Warranty for Axpert All-in-One Multifunction Inverters

All Axpert all-in-one inverters come with a 3-year warranty.
