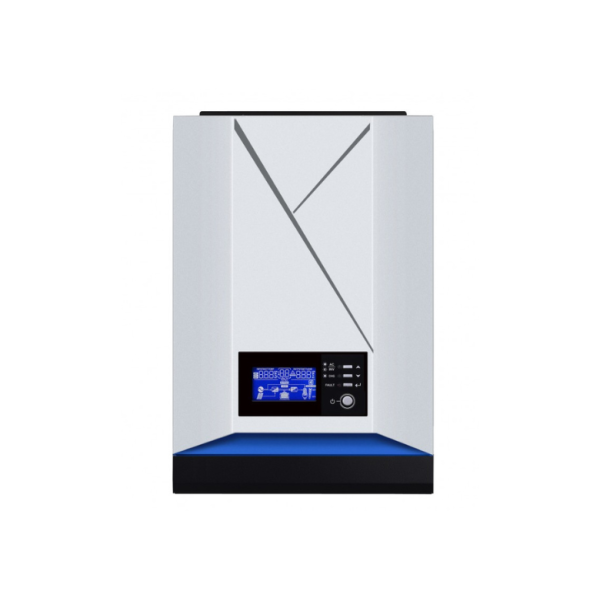

Voltronic Axpert VM1000-12 40A MPPT Inverter

All-in-one Voltronic Axpert VM1000-12 40A MPPT Inverter

12V and 1000W nominal power inverter-charger-controller with a 20A battery charger, 40A MPPT charge controller for solar modules. Model Axpert VP1000-12 allows battery equalization.

3-in-1 equipment combining a 230V inverter, a battery charger when an auxiliary AC input (grid, generator, or similar) is connected, and a solar charge controller from solar panels.

High-performance Axpert charger inverter, designed for small autonomous solar installations.

Includes MPPT charge controller and battery charger.

Operating voltage of 12Vdc.

 Download technical sheet VM1000-12 40A MPPT

 Download installation manual VM1000-12 40A MPPT

 Certificate VM1000-12 40A MPPT

All-in-one multifunction inverter features Axpert VM1000-12 40A MPPT

A redesigned model with easier-to-connect battery and solar panel connectors. Internally, it comes with additional functions that improve battery charging compared to the first multifunctional all-in-one inverters.

Equalization charge

Ability to perform equalizations manually and automatically by programming intervals from 1 to 90 days from the menu. Allows an equalization voltage of 13.5V, essential in lead-acid batteries.

Equalization time

From the menu, we can select the equalization time from 30 to 900 minutes.

Protection voltage

Increased device trip time up to 16 volts, allowing use with more types of batteries and new technologies that emerge.

Pure sine wave all-in-one Axpert inverter

The new 12V 1000W MPPT 40A all-in-one is a powerful pure sine wave inverter suitable for connecting any appliance, motor, etc., up to 1000W. It can operate at 110% for several minutes and double its power for 5 seconds for inductive loads and motor starting thanks to its high overload capacity.

40A MPPT controller

40A MPPT controller.

The all-in-one inverter comes with a 20A AC charger for charging when needed

20-amp battery charger that allows the use of the electrical grid or a generator to charge batteries when needed. Capacity to charge 50 amps with grid and solar panels delivering energy simultaneously to the batteries.

All-in-one inverter with LCD to view all solar installation data.

This screen allows easy and intuitive monitoring of the system, voltage and power of the solar panels, power consumption, output frequency and voltage, in addition to programming many options and operating priorities. Very intuitive to use.

Includes software for Windows and Linux to monitor the system from a PC to modify values, download history, program alarms, etc.

Axpert multifunction all-in-one inverter warranty

All Axpert all-in-one inverters come with a 2-year warranty (free inverter repair as long as it is not due to misuse)

Main characteristics

• Pure sine wave solar inverter
• Output power factor 1
• High PV input voltage range
• Inverter operating without battery
• Built-in 50A PWM solar charger
• Battery equalization function to optimize battery performance and extend life cycle
• Cold start function

For more information about Axpert inverters contact us, we will gladly assist you.

Axpert VM1000-12 40A MPPT Inverter Technical Sheet
