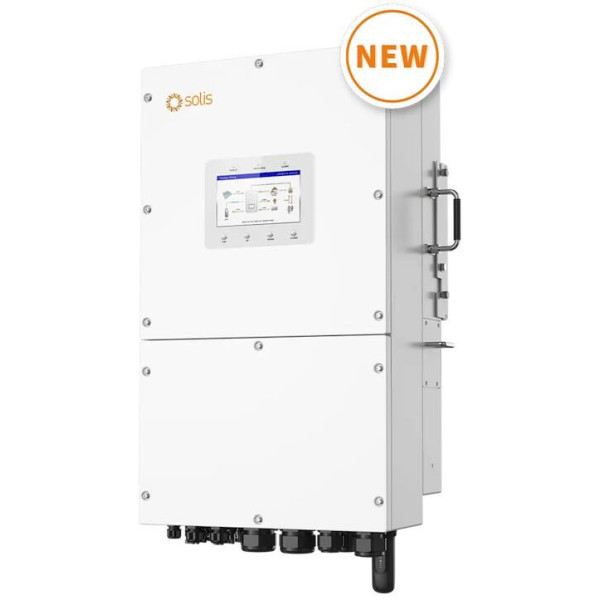

SinglePhase hybrid inverter 9,9kW Solis S6-EH1P9.9K03-NV-YD-L low voltage

SinglePhase hybrid inverter 9,9kW Solis S6-EH1P9.9K03-NV-YD-L low voltage

This advanced series of Soli inverters features 3 integrated MPPTs, each with a current capacity of up to 20A, and is compatible with a wide variety of lithium and lead-acid batteries from different brands

Dimensions (mm): 459×845×313

Weight (kg): 55.5

INV-SLS-S5-EH1P6K-L
Online technical start-up support: No



Secure payment



Shipping policy



Return policy

Solis S6-EH1P(9.9-18)K03-NV-YD-L 9.9kW Single-Phase Hybrid Inverter

The S6-EH1P(9.9-18)K03-NV-YD-L series represents a line of next-generation single-phase hybrid inverters optimized for low-voltage (40–60V) batteries.

Key Features:

  • Solar Optimization: Equipped with 3 MPPT trackers (20A per channel).

  • Open Compatibility: Supports lithium and lead-acid batteries from multiple manufacturers.

  • Operating Modes: Suitable for installations With or without grid connection.

  • Advanced features: Intelligent load management, generator compatibility, AC coupling systems (retrofitting), and support for parallel operation.

A flexible architecture ideal for scalable residential self-consumption projects.

 Download Solis S6-EH1P(9,9-18)K inverter technical sheet

 Download Solis inverter user manual S6-EH1P(9.9-18)K

 Download list of batteries compatible with Solis S6-EH1P(9.9-18)K

Features of the Solis S6-EH1P(9.9-18)K03-NV-YD-L Inverter

  • Ability to work in parallel with up to 6 units, expanding system capacity
  • Intelligent load management, optimizing backup time for loads Critical Features:
  • Customizable battery backup level, ensuring continuous power supply
  • PV-only isolated mode, reducing initial investment costs
  • 7-inch industrial touchscreen with a comprehensive and user-friendly interface for local operation
  • IP66 protection, resistant to harsh environmental conditions
  • Seamless on/off-grid switching in less than 10 ms, ensuring continuous power supply
  • Wide battery compatibility (between 40V and 60V), offering greater flexibility in storage options
  • Multiple connection options and automatic generator control, enabling more flexible local deployment
  • Supports up to 20A of PV input current, compatible with higher-power, next-generation photovoltaic modules
  • SolisCloud: Intelligent remote control, AI optimization, and instant troubleshooting, all in one platform
  • 200% overload for 10 seconds in off-grid mode, ensuring stable start-up of motors, water pumps, and air conditioners
  • Supports photovoltaic input of up to 160% of the inverter's nominal DC power, maximizing solar energy utilization
  • Compatible with existing PV connections in grid-tied systems, allowing export control and off-grid operation

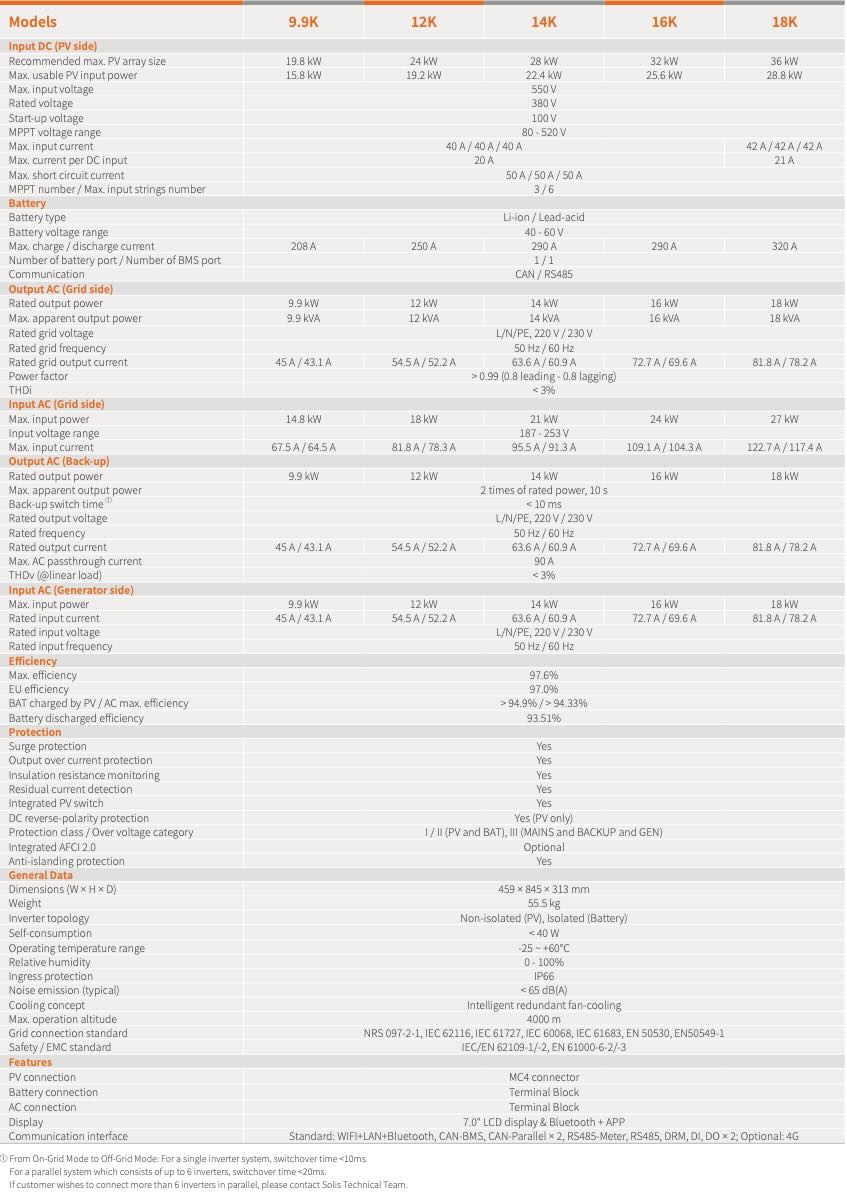

Datasheet - S6-EH1P(9-9-18)K03-NV-YD-L.jpg
