Axpert King Rack 5K Inverter Pack + Pylontech US3000C + 12U Rack Cabinet
All-in-one pack, consisting of a Voltronic Axpert King 5K Rack Format Inverter, Pylontech US3000C Lithium Battery, 12U Rack Cabinet compatible with pylontech US3000 batteries, power cable kit compatible with pylontech batteries and communications cable.
For this pack we could introduce a maximum of 3 pylontech US3000 batteries plus the voltronic axpert king rack format inverter, for the installation of a greater number of batteries, you must contact us.

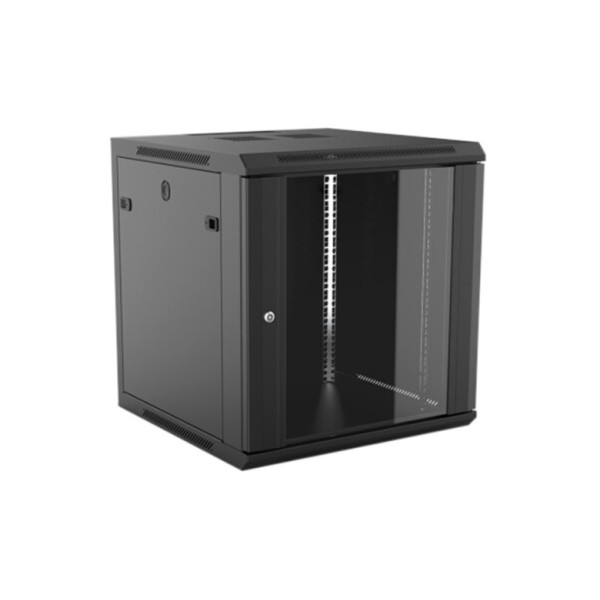

Rack Cabinet 12U 19" 600X600 for 4 US3000 Modules
19″ Wall-Mount Rack Cabinet with 12U 60X60cm of SPCC cold rolled steel, including:
• Removable door with 5mm tempered glass.
• Swing door with over 180º opening.
• Accessible side panels.
• Security lock with key.
• Cable access from top and bottom of the cabinet.
• Prepared for incorporating two cooling fans.
• Wall-mount screws and accessories provided.
• Reliable and rigid construction.
• Dimensions 60 x 60 x 64 cm (w/d/h).
• SUPPLIED UNASSEMBLED.
*MODEL SUPPLIED WITHOUT ACCESSORIES, TRAYS, FANS, THERMOSTAT…*
Pylontech Lithium Battery US3000C 3,5kWh - New version 48V
Pylontech's lithium battery US3000C is the latest technology frontier for photovoltaic storage applications.
The simplicity and modularity of the US3000C with 3.5kWh capacity makes it suitable for small and large accumulation systems and expandable according to current and future energy needs.
IMPORTANT: If you purchase a Pylontech module to expand your battery rack you will not need a cable kit. If it is the first module you buy you will need the Pylontech cable kit to connect your new battery to the solar inverter.
- NOW AVAILABLE -
Inverter Voltronic Axpert KING 5k Rack format - 48V 5000W
Rack Inverter 5000W 48V Voltronic Axpert King is an all-in-one model. It includes an 80A MPPT charge regulator, a pure sine wave inverter, with a maximum power of 5000W, capable of working with 48V batteries. The built-in 60A battery charger can be used to charge the batteries from a 230V source, be it the mains or an electric generator with an instantaneous transfer time.
Its rack format and compatible with Pylontech lithium batteries make it very convenient to be installed together in a cabinet with this format. It has a 2 year warranty
- Dimension: 366.3 x 438 x 130.8mm
- Weight: 15kg
Electrical wiring sets Pylontech for the battery-inverter connection
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Voltronic Axpert Communication Cable to Pylontech Battery | US2000C-US3000C-UP2500
2M communication cable for connecting Voltronic Axpert inverters to Pylontech lithium batteries. This cable is also compatible with Ingeteam's Ingecon SUN Storage inverters with Pylontech US2000C, US3000C, or high voltage H48050 batteries.
Important: This cable is suitable for Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for Ingeteam's Ingecon SUN Storage 6 TL M inverters.
Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.
Pack description
Axpert King Rack 5K Inverter Pack + Pylontech US3000C + 12U Rack Cabinet
All-in-one pack, consisting of a Voltronic Axpert King 5K Rack Format Inverter, Pylontech US3000C Lithium Battery, 12U Rack Cabinet compatible with pylontech US3000 batteries, power cable kit compatible with pylontech batteries and communications cable.
For this pack we could introduce a maximum of 3 pylontech US3000 batteries plus the voltronic axpert king rack format inverter, for the installation of a greater number of batteries, you must contact us.
Inverter Voltronic Axpert King 5K Rack Format - Isolated inverter 5,000W 48V
Inverter-charger-regulator of 48V and 5000W of nominal power, with 60A battery charger, 80A MPPT charge regulator for solar modules. Insulated axpert model that allows the equalization of batteries.
3-in-1 equipment that combines 230V inverter, battery charger when an auxiliary alternating current input is connected (network, generator set or similar) and a solar charge maximizing regulator from solar panels.
Axpert charger inverter with maximum performance, designed for small autonomous solar installations.
It incorporates a maximizing MPPT charge regulator for MPPT modules and a battery charger with high charging current.
48Vdc working voltage.
Datasheet Inverter Voltronic Axpert King 5000VA 48V formato rack
Features Pylontech US3000C 48V lithium battery
The Pylontech US3000C 3.55kWh lithium-ion battery is made up of lithium-ion modules that allow us to have a modular photovoltaic storage system to expand its capacity with up to 16 units without the need for any additional equipment. Among its main features is also the compatibility with many of the inverters on the market. Its price-performance ratio is another factor to take into account.
The 48V Pylontech US3000C offers an easy-to-use format and quick parallel connection. It contains an internal BMS that is responsible for distributing power between the cells efficiently and safely, preventing overcharging or excessive discharging.
Technical datasheet Pylontech US3000C 48V - lithium battery 3.55kWh
Rack cabinet 12U 600X600
Whatever the requirements of your company, both in terms of space and capacity, we provide a tailor-made solution. Whether you are an SME or a multinational, your company will have the perfect solution if you want to install micro CPDs, telecommunications systems, networks, educational systems or broadcasting; what you need, with the highest quality and at competitive prices.
We have 19 ”wall cabinets of different heights —from 6U to 18U—, with depths of 600 mm and 600 mm, ideal for requirements of reduced space and / or restrictive environmental conditions.
Pylontech power cable kit for battery-inverter connection | US2000C-US3000C-UP2500
The Pylontech power cable kit is necessary for connecting the battery to our photovoltaic inverter. This cable kit is compatible with the Pylontech US2000C, US3000C or Pylontech 24V UP2500 battery models.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting to the inverter.
2 x 2m long power cables (positive and negative)
2M communication cable to connect Voltronic Axpert inverters with Pylontech lithium batteries.
This cable is also compatible with Ingeteam Ingecon SUN Storage inverters with US2000C, US3000C or H48050 high voltage Pylontech batteries.
Important: This cable is suitable for Voltronic Axpert VMIII 5.000-48, Voltronic Axpert King 5.000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II inverters 8,200-48 as well as for Ingeteam's Ingecon SUN Storage 6 TL M inverters.
Pack content
19″ Wall-Mount Rack Cabinet with 12U 60X60cm of SPCC cold rolled steel, including:
• Removable door with 5mm tempered glass.
• Swing door with over 180º opening.
• Accessible side panels.
• Security lock with key.
• Cable access from top and bottom of the cabinet.
• Prepared for incorporating two cooling fans.
• Wall-mount screws and accessories provided.
• Reliable and rigid construction.
• Dimensions 60 x 60 x 64 cm (w/d/h).
• SUPPLIED UNASSEMBLED.
*MODEL SUPPLIED WITHOUT ACCESSORIES, TRAYS, FANS, THERMOSTAT…*
Rack Cabinet 12U 600X600 for 4 US3000 Modules
Whatever your company's requirements are, whether in terms of space or capacity, we provide a solution tailored to your needs. Whether you're a small or multinational company, you will have the perfect solution if you wish to install micro data centers, telecommunications systems, networks, educational systems, or broadcasting; whatever you need, with the highest quality and at competitive prices.
We offer 19" wall-mount cabinets of various heights — from 6U to 18U — with a depth of 600 mm, ideal for space-constrained requirements and/or restrictive environmental conditions.
Main Features of Rack Cabinets
Wall-mount rack cabinet with standard 19" width (482.6 mm), providing ample interior space for components and cabling. Compact and robust design.
Modular and stackable construction.
Easy access from three sides for installation and maintenance, reducing assembly and management time.
Front door with 4 mm tempered glass and security lock with key. Full 180° opening.
Easily removable side panels.
Adjustable mounting rails.
These rack cabinets can be installed on walls or floors.
Materials and Finishes
Treatment: degreasing and anti-rust paint.
Protection Class: IP20.
Steel structure thickness: 2 mm.
Material: High-quality cold rolled SPCC steel.
Color: Black, smooth and polished finish.
Pylontech's lithium battery US3000C is the latest technology frontier for photovoltaic storage applications.
The simplicity and modularity of the US3000C with 3.5kWh capacity makes it suitable for small and large accumulation systems and expandable according to current and future energy needs.
IMPORTANT: If you purchase a Pylontech module to expand your battery rack you will not need a cable kit. If it is the first module you buy you will need the Pylontech cable kit to connect your new battery to the solar inverter.
- NOW AVAILABLE -
Features Pylontech US3000C 48V lithium battery
Technical datasheet Pylontech US3000C 48V - lithium battery 3.55kWh
Installation manual for lithium battery Pylontech US3000C 48V
The Pylontech US3000C 3.55kWh lithium-ion battery is made up of lithium-ion modules that allow us to have a modular photovoltaic storage system to expand its capacity with up to 16 units without the need for any additional equipment. Among its main features is also the compatibility with many of the inverters on the market. Its price-performance ratio is another factor to take into account.
The 48V Pylontech US3000C offers an easy-to-use format and quick parallel connection. It contains an internal BMS that is responsible for distributing power between the cells efficiently and safely, preventing overcharging or excessive discharging.
The manufacturer Pylontech offers a 7 year warranty on the product as long as the instructions for use are followed. We recommend contacting our technicians and following the instructions to keep the battery in perfect condition and to comply with the requirements of the brand.
Pylontech US3000C 48V batteries are compatible with Voltronic Axpert or Victron Energy off-grid inverters, as well as low-cost inverters such as Goodwe. Contact our technical team for Pylontech's compatibility with your inverter installation.
Manufacturer's warranty: 7 years (+3 additional years with registration on manufacturer's website)
To access the additional 3 years warranty offered by the manufacturer it is necessary to register the product on their website. You can find the form to fill in AHERE.
Capacidad de las batería Pylontech US3000C 48V
The capacity of each module of the Pylontech US3000C 48V lithium battery is 3.55kWh. The discharge cycles of lithium batteries are much deeper than lead batteries, so the performance and features make it ideal for self-consumption installations. Thanks to its modular format, up to 16 units can be installed, reaching up to 56.8kWh.
Advantages of the LiFePo4 technology Pylontech US3000C
- Life cycle over 6,000 cycles, equivalent to approximately 11 years of work, with a final capacity of 80%;
- The molecular structure of LFP batteries is more stable and therefore safer, allowing a 600°C increase in combustion temperature compared to 300°C for NMC and LCO;
- They are easy to expand to obtain a large storage size;
- Increased depth of discharge (90% DOD);
- Compact and modular design allowing easy installation/upgrade;
- Ability to operate in different temperature conditions;
- Advanced BMS that allows you to report alarms in real time; Advanced BMS that allows you to report alarms in real time
Connection of Pylontech US3000C 3.55kWh 48V battery modules
List of Inverters compatible with Pylontech US3000C 48V batteries
See the following PDF for a list of inverters compatible with pylontech US2000C, US3000C and pylontech Powercube X1, H1/H2 and Force H1 batteries.
List of Inverters compatible with Pylontech batteries
The Pylontech US2000 battery is compatible with models:
- Goodwe GW-BP / SBP and GW-ES/EM.
- Voltronic Axpert (OFF-GRID Installations)
Technical specifications Pylontech US2000C - US3000C
Rack Inverter 5000W 48V Voltronic Axpert King is an all-in-one model. It includes an 80A MPPT charge regulator, a pure sine wave inverter, with a maximum power of 5000W, capable of working with 48V batteries. The built-in 60A battery charger can be used to charge the batteries from a 230V source, be it the mains or an electric generator with an instantaneous transfer time.
Its rack format and compatible with Pylontech lithium batteries make it very convenient to be installed together in a cabinet with this format. It has a 2 year warranty
- Dimension: 366.3 x 438 x 130.8mm
- Weight: 15kg
Inverter Voltronic Axpert KING 5k Rack format - 48V 5000W
Inverter-charger-regulator of 48V and 5000W of nominal power, with 60A battery charger, 80A MPPT charge regulator for solar modules. Insulated axpert model that allows the equalization of batteries.
3-in-1 equipment that combines a 230V inverter, a battery charger when an auxiliary alternating current input is connected (red, generator set or similar) and a solar charge maximizing regulator from solar panels.
Axpert charger inverter with maximum performance, designed for small autonomous solar installations.
It incorporates a maximizing MPPT charge regulator for MPPT modules and a battery charger with high charging current. 48Vdc working voltage.
Datasheet Inverter Voltronic Axpert King 5000VA 48V rack format
Technical sheet of the Axpert King 5KVA inverter of 5,000W and 48V rack format
Characteristics of the Axpert King 5,000W 48V Inverter
• Zero transfer time (0 ms) to protect mission critical loads such as servers and ATMs
• Communication port reserved for BMS (RS485, CAN-BUS or RS232)
• Configurable AC / PV output usage prioritization and timer
• Pure sine wave solar inverter
• Selectable high power charging current
• Wide DC input range
• Compatible with mains voltage or generator power
• Automatic restart while AC recovers
• Protection against overloads and short circuits
• Smart battery charger design for optimized battery performance
• Cold start function
• Optional parallel operation up to 9 units
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Electrical wiring sets Pylontech for the battery-inverter connection
Important: The communication cable between battery and inverter is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5000-48, Voltronic Axpert King 5000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for the inverters Ingecon SUN Storage 6 TL M of which Ingeteam.
2M communication cable for connecting Voltronic Axpert inverters to Pylontech lithium batteries. This cable is also compatible with Ingeteam's Ingecon SUN Storage inverters with Pylontech US2000C, US3000C, or high voltage H48050 batteries.
Important: This cable is suitable for Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for Ingeteam's Ingecon SUN Storage 6 TL M inverters.
Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.
All-in-one pack, consisting of a Voltronic Axpert King 5K Rack Format Inverter, Pylontech US3000C Lithium Battery, 12U Rack Cabinet compatible with pylontech US3000 batteries, power cable kit compatible with pylontech batteries and communications cable.
For this pack we could introduce a maximum of 3 pylontech US3000 batteries plus the voltronic axpert king rack format inverter, for the installation of a greater number of batteries, you must contact us.
