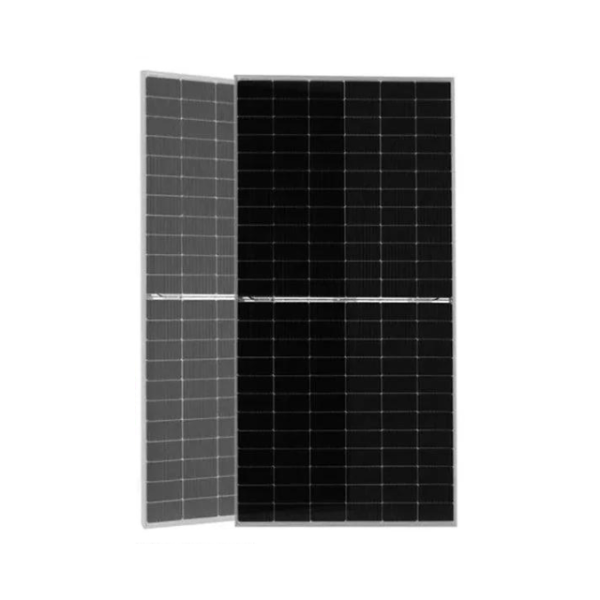

Jinko Tiger Pro 72HC-TV 535W - Bifacial transparent module JKM535M-72HL4-TV

Jinko Tiger Pro 72HC-TV 535W - Bifacial module with transparent backsheet JKM535M-72HL4-TV

The Jinko Tiger Pro 72HC-TV 535W solar panel is a bifacial module with a transparent back sheet that provides, in addition to maximum efficiency, aesthetic qualities that make it ideal for installation In visible places, it can be a garden or terrace pergola or floors and roofs with triangular supports for solar panels.

See Technical Data Sheet Jinko Tiger Pro 72HC-TV 535W

Certificate Jinko Tiger Pro 72HC-TV 535W

- Multi Busbar Technology

Better light and current capture that improves the power and reliability of the module.

- Lightweight design

Lightweight design with transparent backsheet for easy installation and low BOS cost.

- Longer useful life Energy performance

0.45% annual power degradation and 30-year linear power warranty.

- Improved mechanical loading

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

- Greater energy performance

The power of the modules generally increases between 5 and 25%, which means a significantly lower LCOE and a higher IRR.

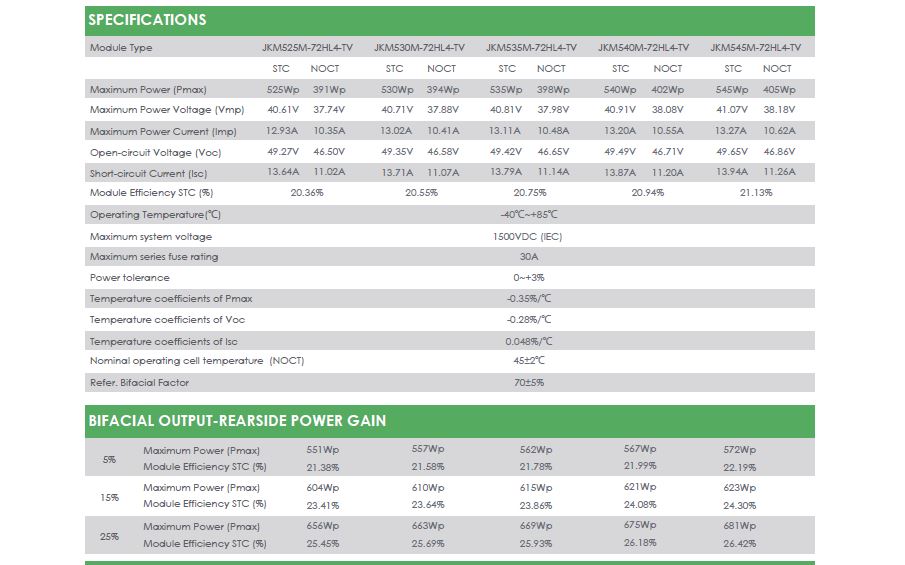

Technical characteristics Jinko Tiger Pro 72HC-TV 535W JKM535M-72HL4-TV
