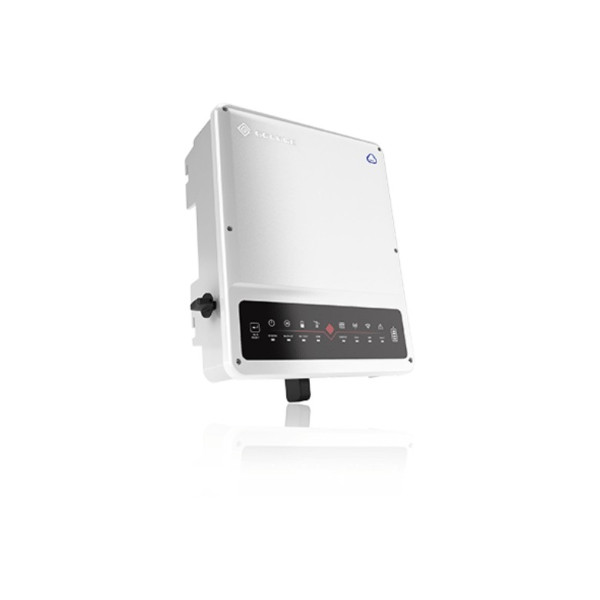

GoodWe GW3600-EH Single Phase Storage Inverter HV

GoodWe Hybrid Inverter GW3600-EH

Hybrid inverter of the manufacturer Goodwe of 3.6kW 85-450V bidirectional, designed for installations of last generation, the solar inverter GoodWe of the EH series incorporates 2 MPPT trackers and 15.7A battery charger. It manages the energy coming from the solar panels and uses it for the consumptions of the house, storing the surplus in the batteries. The EH is compatible with high voltage batteries (85-450V) and with a power deviation lower than 20W, this inverter is totally designed to maximize solar self-consumption. The fact that it takes less than 10 seconds to switch from grid to PV to supply power for heavy loads, helps users to avoid expensive intakes from the grid.

Characteristics Goodwe inverter GW3600-EH

The GoodWe photovoltaic inverter can work with grid connection systems and isolated systems, during the day the solar panels generate electricity that can be used to power the loads, export to the grid or charge the battery according to its configuration.

The stored energy can be used to feed the consumptions during the night. The GoodWe GW3600-EH inverter can function as a charger inverter (15.7A), charging the batteries with the power grid.

Download Technical Sheet GoodWe GW3600-EH

The GoodWe GW3600-EH is designed for places where there is a significant gap between the price of electricity at peak and off-peak hours, with no incentives for photovoltaic installations. The GoodWe GW3600-EH can achieve self-consumption up to 95%.

Greater self-consumption; During the sunrise and sunset the electrical energy produced by the solar panels optimizes the home's own consumption, the surplus is used to charge the batteries and can be used when necessary, at night or when there is no photovoltaic production.

Peak shaving; Intelligent management of battery charge, the GoodWe acts as an intelligent energy management system, can be programmed to charge the electricity grid when the price of electricity is more batrato and use energy at peak times.

Feeding critical loads; Small household appliances, such as refrigerators, routers, lamps, computers and other household appliances can be connected to the reserve supplies of the inverter, when there is no electrical grid the system is connected in milliseconds to the reserve power source.

GooWe inverter installation GW3600-EH

The GoodWe EH SERIES photovoltaic hybrid inverter is easy to install, only basic electricity knowledge is required, for its installation we recommend following the manufacturer's instructions, from Suministros del Sol we advise you on the installation of the inverter, we provide you with schemas and telephone advice. We also provide our technical team of installers, so that the solar installation works properly with full guarantee and is satisfied with the service provided.

Hybrid inverter monitoring Goodwe GW3600-EH

The GoodWe inverter incorporates a monitoring system, the manufacturer offers the following communication options to the monitoring portal;

EzLogger Pro, is a monitoring device developed by GoodWe that reads and records the key data of the system and transmits them through the internet to the GoodWe portal.

Ezlogger, connects to the inverter via RS485, connects to the PC via Ethernet and transmits the data to the GoodWe EzExplorer monitoring software and to the GoodWe portal.

Ezlogger WI-FI, connects to the inverter via RS485, connects to the wireless router through an integrated Wi-Fi communication module and transmits the data to the GoodWe portal.

GoodWe GW3600-EH inverters warranty

GoodWe EM inverters guarantee is for 5 years, starting from start-up. Accessories, including WIFI and EzMeter with a 2-year warranty. From the date of manufacture of GOODWE. "EzMeter and WIFI integrated"

Buy GoodWe inverter GW3600-EH

Buy the GoodWe photovoltaic inverter is easy, simple and at a cheap price in Suministros del Sol, our technical and commercial team will advise you on the range of Goodwe solar inverters, both of the EH series and of the others of the GoodWe manufacturer. Contact us about prices of solar inverters, we will propose the best solution for the improvement of the operation of your solar installation.
