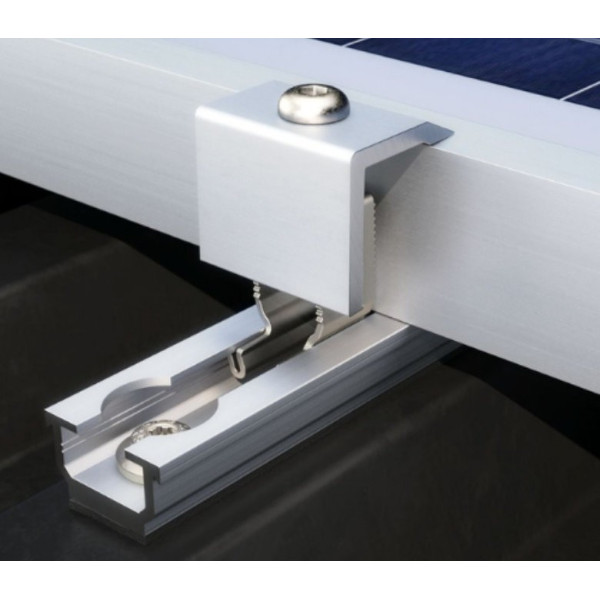

Solar panel support on sheet metal for 4 panel

Mounting system for photovoltaic installations on the roof of trapezoidal sheet metal and corrugated iron roof

Very compact, simple and quick to install the mounting system with a completely convincing price-performance ratio.

x 10


€102.60

x 6


€12.78

x 4


€8.52

€123.90
Tax included

Pack description

Solar panel support on sheet meta

The compact system allows the quick installation of photovoltaic modules with frame in trapezoidal roofs and corrugated iron roofs. For the direct assembly of the modules, only four different components are required: an optimized weight clamping foot, two thin-walled screws with a special coating, a terminal and a medium screw. The screw with tip of displacement material saves the previous perforation, resulting in an extremely short installation time. The low volume, elimination of the mounting rails, the few components and reduce the absolute minimum advantage to very low investment costs of the purchase.

System Features

  • For trapezoidal and corrugated iron roofs
  • Some components of the assembly, without mounting rail
  • Water-resistant design holding feet with pre-installed EPDM rubber
  • Proof of tightness UB 5.1 / 10-535 MFPA


Advantages of assembly

  • Fast and easy to assemble in less than 10 minutes per kWp
  • Extremely light weight of only 1.3 kg per kWp
  • Extremely easy to carry with all parts for 5 kWp in a shoebox
  • Mounting screws without pre-drilling using upper displacement material
  • Assembly without template for drilling
  • Variable height module terminals for module heights 30-50 mm
  • Online design plant by configurator Renusol project
  • Questions / characteristics of the ceiling through the application technology: Tel +49 221 788707-29

Pack content

The mini rail has a wide application in trapezoidal metal roofs, such as the 5 rib roof, you can install the mini rail easily.


Guide clip for sheet metal (micro rail) 115 mm

The mini rail has a wide application in trapezoidal metal roofs, such as the 5 rib roof, you can install the mini rail easily.

Staple to fasten modules to the Pro Standard Guide. Adaptable to different profiles. We will use it for the intermediate fasteners


Inter Clamp 40

Staple to fasten modules to the Pro Standard Guide. Adaptable to different profiles. We will use it for the intermediate fasteners.

Staple to attach modules to the Pro Standard Guide. Serves for 35 and 40mm profiles. We will use it for the beginning and the end of the rows.


End Clamp 35/40

Staple to attach modules to the Pro Standard Guide. Serves for 35 and 40mm profiles. We will use it for the beginning and the end of the rows.
