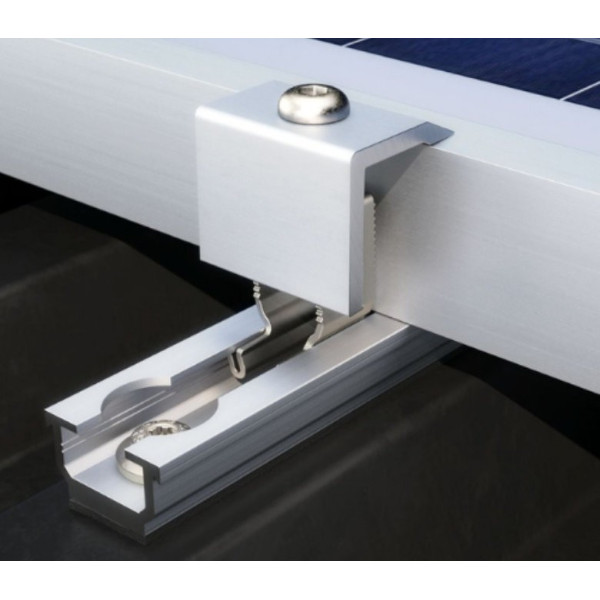

Solar panel support on sheet meta

The compact system allows the quick installation of photovoltaic modules with frame in trapezoidal roofs and corrugated iron roofs. For the direct assembly of the modules, only four different components are required: an optimized weight clamping foot, two thin-walled screws with a special coating, a terminal and a medium screw. The screw with tip of displacement material saves the previous perforation, resulting in an extremely short installation time. The low volume, elimination of the mounting rails, the few components and reduce the absolute minimum advantage to very low investment costs of the purchase.

System Features

• For trapezoidal and corrugated iron roofs
• Some components of the assembly, without mounting rail
• Water-resistant design holding feet with pre-installed EPDM rubber
• Proof of tightness UB 5.1 / 10-535 MFPA

Advantages of assembly

• Fast and easy to assemble in less than 10 minutes per kWp
• Extremely light weight of only 1.3 kg per kWp
• Extremely easy to carry with all parts for 5 kWp in a shoebox
• Mounting screws without pre-drilling using upper displacement material
• Assembly without template for drilling
• Variable height module terminals for module heights 30-50 mm
• Online design plant by configurator Renusol project
• Questions / characteristics of the ceiling through the application technology: Tel +49 221 788707-29
