Insulated Solar Kit 27.840Wh/day and 10kWh Lithium Battery - LuxPower SNA 6kW
Solar photovoltaic kit for home without connection to electric grid composed of:
The photovoltaic lithium kit for isolated housing is ideal for consumptions up to 5000w, battery working voltage investor is 48v along with the lithium battery HinaESS, a combination that offers maximum efficiency results at the best market price. The solar kit is ideal for isolated homes with medium consumptions, country houses and weekends.
They will need support (not included) for solar panels, you can find them right here.
Solar Panel ZNShine 600W - ZXM7-UPLD144 Series N-Type Double Glass
ZNShine 600W ZXM7-UPLD144 Series solar panel with TOP cell technology with Monocrystalline double glass. The leading manufacturer in the manufacture of ZNShine solar panels is among the most recognized brands worldwide incorporating the latest technology in solar capture.
Size: 2279 x 1134 x 30 mm
Weight: 31.5kg
12 years product warranty and 30 years of linear production guarantee above 87.4%.
Tier1 Bloomberg
LuxPower SNA 6000W Solar Inverter for Off-grid Installation
LuxPower SNA 6000W Solar Inverter for Off-grid Installation
LuxPower SNA 6000W all-in-one multifunctional 6000W 48V solar inverter, which combines the functions of an inverter, MPPT solar controller, and battery charger to provide a power supply for homes without connection to the electricity grid.
Dimensions: 330 x 505 x 135mm
Weight: 14.5 kg
Power: 6,000W
Grid Type: Single-phase
MPPT: 2
Monitoring: Wifi (included)
Warranty: 3 years
New Lithium battery Hi-5 HinaESS 5,12kWh V3 - 51,2V
New version of the lithium Battery (LFP) Hi-5 manufacturer HinaESS of 5,12kWh capacity (100Ah to 51,2V) and 6000 life cycles useful, ideal for solar energy applications, both for the photovoltaic self-consumption with storage, and for solar installations isolated from the power grid.
Dimensions: 438x165x546mm
Weight: 49,4 kg
Guarantee: 10 years
*Important: We recommend purchasing the HinaESS update cable(sold separately).
HinaESS 25mm cable kit for battery-inverter connection
The HinaESS 25mm power cable kit is necessary for the connection of the battery to our photovoltaic investor. This cable kit is compatible with the HinaESS Hi-5 battery models.
2 x 1,5m long power cables (positive and negative)

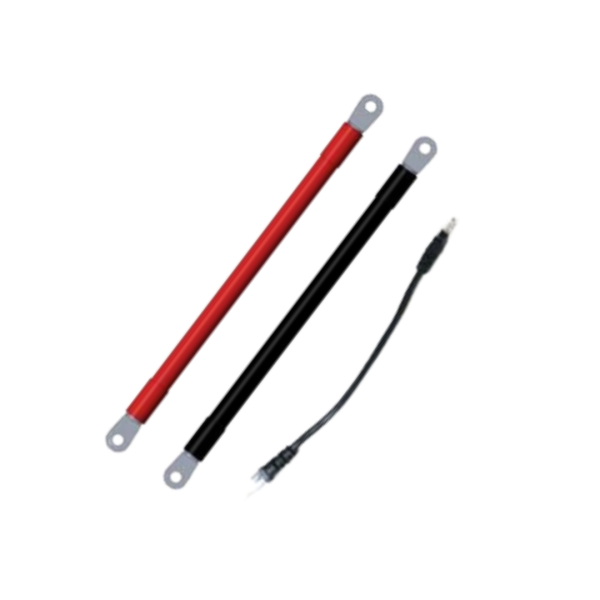

HynaESS Battery Parallel Kit Low Voltage
Parallel kit for batteries HinaESS for low voltage.
These connectors allow us to connect in parallel several batteries to demand maximum power.
The price includes a positive and negative connector game.
Voltronic/Luxpower communication cable to HinaESS Hi-5 battery
2M communications cable to connect investors Voltronic Axpert or Luxpower SNA with HinaESS lithium batteries.
Important: This cable is suitable for investors Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48x and the rest of superior power models.
Please consult with us if you have any questions of compatibility of your equipment with this cable. It's not sold separately.
Rack Cabinet 12U 19" 600X600 for 3 US5000 Modules
19″ Wall-Mounted Rack Cabinet, 12U 60X60cm, made of SPCC cold-rolled steel, including:
• Removable door with 5mm thick tempered glass.
• Door opens more than 180º.
• Accessible side panels.
• Security lock with key.
• Cable access from the top and bottom of the cabinet.
• Prepared to incorporate two cooling fans.
• Screws and wall mounting accessories supplied.
• Reliable and rigid construction.
• Dimensions 60 x 60 x 64 cm (width/depth/height).
• SUPPLIED UNASSEMBLED.
MODEL SUPPLIED WITHOUT ACCESSORIES, SHELVES, FAN, THERMOSTAT…
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
40A Differential Kayal
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Pack content
ZNShine 600W ZXM7-UPLD144 Series solar panel with TOP cell technology with Monocrystalline double glass. The leading manufacturer in the manufacture of ZNShine solar panels is among the most recognized brands worldwide incorporating the latest technology in solar capture.
Size: 2279 x 1134 x 30 mm
Weight: 31.5kg
12 years product warranty and 30 years of linear production guarantee above 87.4%.
Tier1 Bloomberg
Solar Panel ZNShine 600W - ZXM7-UPLD144 Series N-Type Double Glass
ZNShine 600W Module - ZXM7-UPLD144 Series N-Type TOPWith monocrystalline with the latest technology in photovoltaic cells that guarantees maximum efficiency even in low luminosity conditions.
Founded in 1988, ZNShine Solar is one of the leading global manufacturers of high-tech photovoltaic modules and, thanks to its advanced production lines, has a capacity to produce 10 GW modules.
Bloomberg has listed ZNShine as the world manufacturer of top-level photovoltaic modules. Currently, Znshine distributes its sales to over 60 countries around the world.
The ZNShine 600W solar panel - ZXM7-UPLD144 Series N-Type TOPWith has 12 years warranty and is within the Tier1 list of the most sold brands.
Technical datasheet ZNShine 600W - ZXM7-UPLD144 Series
Guarantee ZNShine 600W - ZXM7-UPLD144 Series
Certificate TUV ZNShine 600W - ZXM7-UPLD144 Series
Certificate CE ZNShine 600W - ZXM7-UPLD144 Series
- Excellent cell efficiency
SMBB technology reduces the distance between the collector bars and the network line, which increases the power.
-Anti-PID
The resistance to PID is guaranteed through the quality control of the cell and raw materials manufacturing process.
-TIER 1
Global level 1 financeable brand with advanced automated manufacturing with independent certification.
- Better response with weak lighting
Increased output power in weak light conditions, such as bruma, cloudy and early morning hours.
- Adapts to aggressive outdoor environments
Resistant to hostile environments such as salt, ammonia, sand, high temperatures and humidity.
- Excellent quality management system
Guaranteed reliability and strict quality measures beyond certified requirements.
Technical specifications Solar panel ZNShine 600W - ZXM7-UPLD144 Series N-Type TOPCon
Data sheet
- Module Type
- Monocristalino
- Panel power
- 560W-600W
LuxPower SNA 6000W Solar Inverter for Off-grid Installation
LuxPower SNA 6000W all-in-one multifunctional 6000W 48V solar inverter, which combines the functions of an inverter, MPPT solar controller, and battery charger to provide a power supply for homes without connection to the electricity grid.
Dimensions: 330 x 505 x 135mm
Weight: 14.5 kg
Power: 6,000W
Grid Type: Single-phase
MPPT: 2
Monitoring: Wifi (included)
Warranty: 3 years
LuxPower SNA 6000W Solar Inverter for Off-grid Installation
The 6000W Luxpower SNA solar inverter is ideal for installation in homes or premises without connection to the electricity grid that require a stable and high-quality power supply. The SNA series from LuxPower are specially designed to operate in off-grid mode, are compatible with most 48V lithium batteries on the market, and have an advanced communication and monitoring system that improves upon all existing equipment on the market.
Operating Modes LuxPower SNA 6000W
The SNA series off-grid inverters allow the system to function as backup power or as a substitute for a diesel generator. Since the inverter supports the parallel connection function, the system capacity can range from 5 kW to 50 kW.
Off-grid operating mode: functions as a traditional off-grid inverter, it can set the output to public grid first, battery first, or solar first.
This equipment is ideal for installations where the electricity grid does not reach or there is a weak grid that causes power outages. It is also the ideal equipment for those homes that want to disconnect from the electricity grid.
It has a backup AC port where we can choose to connect the electricity grid, diesel generator (recommended), and other energy sources such as wind turbines.
Luxpower SNA 6000W Mobile Monitoring
One of the most striking aspects of the Luxpower SNA series inverters is the development of the inverter's communication system, which includes a standard Wifi stick and allows mobile monitoring through the LuxPowerView mobile application available for both Android and iOS operating systems.
Technical Details LuxPower SNA 6000W
- Output Power: 6000W
- Grid Type: Single-phase
- MPPT: 2
- MPPT Range: 100-480V
- Compatible Batteries: *Related Downloads
- Maximum Charge and Discharge Current: 125/140A
- Communication: LCD+LED, RS4855, WiFi, CAN
- Weight: 14.5 kg
- Dimensions: 335 x 450 x 160mm
Technical Data Sheet LuxPower SNA 6000W Inverter
LuxPower SNA 6000W Warranty
The equipment has a 3-year warranty, provided that the following handling recommendations are met:
Luxpower SNA 6000W Warranty Conditions
LuxPower SNA 6K Inverter Installation
LuxPower SNA 6000W Inverter Installation Manual
User Manual LuxPower SNA 6000W Inverter
LuxPower SNA 6000W Inverter Configuration Manual
List of batteries compatible with the LuxPower SNA 6K inverter
Batteries compatible with LuxPower SNA 6000W Inverter
CE Certificate LuxPower SNA 6K inverter
Data sheet
- Inverter power
- 6-8kW
- Type of inverter
- Off-grid
New version of the lithium Battery (LFP) Hi-5 manufacturer HinaESS of 5,12kWh capacity (100Ah to 51,2V) and 6000 life cycles useful, ideal for solar energy applications, both for the photovoltaic self-consumption with storage, and for solar installations isolated from the power grid.
Dimensions: 438x165x546mm
Weight: 49,4 kg
Guarantee: 10 years
*Important: We recommend purchasing the HinaESS update cable(sold separately).
Lithium battery Hi-5 HinaESS 5,12kWh V3 - 51,2V
Lithium Battery (LFP) Hi-5 manufacturer HinaESS of 5,12kWh capacity (100Ah to 51,2V) and 6000 life cycles useful, ideal for solar energy applications, both for the photovoltaic self-consumption with storage, and for solar installations isolated from the power grid.
This 5.12kWh modular battery is expandable in up to 50 units without any additional equipment and is compatible with most solar market investors.
HynaESS Hi-5 battery compatible investors
Compatible with investors Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Solark, SRNE, Must... parallel connection capacity up to 32 units. Easy installation thanks to its fast connections to reduce times in the facilities.
List of battery-compatible investors HinaESS Hi-5
Battery capacity HinaESS Hi-5
The energy storage capacity with which each of these modules counts is of 5,12kWh. Thanks to the format it presents, you can connect to 32 parallel units, reaching the fridge 166.4kWh power storage capacity.
Advantages of LFP technology
It has a long and extended service life, about 6,000 cycles and about 10 years approximately, guaranteeing the manufacturer that arrives with more than 70% of the useful capacity to the int. They are easy to enlarge to obtain large storage; increase in download depth (90% DOD); compact and modular design that allows easy installation / update; possibility of operating in different temperature conditions; advanced BMS that allows you to report real-time alarms.
HynaESS Hi-5 battery interface
Technical specifications of the HinaESS Hi-5 V3 battery 51.2V 5.12kWh
Technical Specifications
| Feature | Details |
|---|---|
| Cell Type | LFP |
| Rated Energy | 5.12kWh |
| Rated Capacity | 100Ah |
| Rated Voltage | 51.2V |
| Charge Voltage | 57.2V |
| Max. Charge/Discharge Current | 100A |
| Discharge Peak Current | 105A (15s) / 150A (0.5s) |
| Parallel Connection | Up to 50 units (standalone), 256 units (with hub) |
| IP Level | IP20 |
| Dimensions | 438 x 165 x 546 mm |
| Weight | 49.4 Kg |
| Communication | CAN / RS485 |
| Compatible Inverters | Victron, Luxpower, Deye, Voltronic, SMA, Ingeteam, Goodwe, Growatt, Solis, Sofar, Solark, SRNE, Must |
| Work Temperature | -20 °C to +55 °C |
| Depth of Discharge (DoD) | 90% |
| Remote Maintenance | Flexible monitoring and firmware backup |
| Warranty | 10 years (6000 cycles) |
| Certifications | CE, UN38.3, IEC62619 |
| Protections | Overcharge, overcurrent, overvoltage, short circuit, load balance, low SOC protection |
Download
Technical data Litio HinaESS Hi-5 5,12kWh Battery - 51,2V
The HinaESS 25mm power cable kit is necessary for the connection of the battery to our photovoltaic investor. This cable kit is compatible with the HinaESS Hi-5 battery models.
2 x 1,5m long power cables (positive and negative)
HinaESS power cable kit for battery-inverter connection Δ Hi-5
Important: The battery-inverter communication cable is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for Ingecon SUN Storage 6 Ingeteam or investors off-grid LuxPower SNA.
Parallel kit for batteries HinaESS for low voltage.
These connectors allow us to connect in parallel several batteries to demand maximum power.
The price includes a positive and negative connector game.
2M communications cable to connect investors Voltronic Axpert or Luxpower SNA with HinaESS lithium batteries.
Important: This cable is suitable for investors Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48x and the rest of superior power models.
Please consult with us if you have any questions of compatibility of your equipment with this cable. It's not sold separately.
19″ Wall-Mounted Rack Cabinet, 12U 60X60cm, made of SPCC cold-rolled steel, including:
• Removable door with 5mm thick tempered glass.
• Door opens more than 180º.
• Accessible side panels.
• Security lock with key.
• Cable access from the top and bottom of the cabinet.
• Prepared to incorporate two cooling fans.
• Screws and wall mounting accessories supplied.
• Reliable and rigid construction.
• Dimensions 60 x 60 x 64 cm (width/depth/height).
• SUPPLIED UNASSEMBLED.
MODEL SUPPLIED WITHOUT ACCESSORIES, SHELVES, FAN, THERMOSTAT…
Rack Cabinet 12U 600X600 for 4 US5000 Modules
Whatever your company's requirements, both in terms of space and capacity, we provide a tailored solution. Whether you are a small business or a multinational, your company will have the perfect solution if you want to install micro data centers, telecommunications systems, networks, educational systems, or broadcasting; whatever you need, with the highest quality and competitive prices.
We have 19” wall cabinets of different heights —from 6U to 18U—, with a depth of 600 mm and width of 600 mm, ideal for limited space requirements and/or restrictive environmental conditions.
Main Features of Rack Cabinets
Wall-mounted rack cabinet with standard width of 19” (482.6 mm), with ample interior space for components and wiring. Compact and resistant design.
Modular and stackable construction.
Easy access from three sides for installation and maintenance, reducing assembly and management time.
Front door with 4mm tempered glass and keyed security lock. Total opening angle of 180°.
Easily removable side panels.
Adjustable mounting rails.
This type of rack cabinets can be installed both on walls and on the floor.
Materials and Finishes
Treatment: degreasing and anti-rust paint.
Degree of Protection: IP20.
Thickness of the steel structure: 2 mm.
Material: High quality cold rolled SPCC steel.
Color: Black, smooth and polished finish.
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Interior surface panel 12 Legrand elements
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Solar photovoltaic kit for home without connection to electric grid composed of:
The photovoltaic lithium kit for isolated housing is ideal for consumptions up to 5000w, battery working voltage investor is 48v along with the lithium battery HinaESS, a combination that offers maximum efficiency results at the best market price. The solar kit is ideal for isolated homes with medium consumptions, country houses and weekends.
They will need support (not included) for solar panels, you can find them right here.
