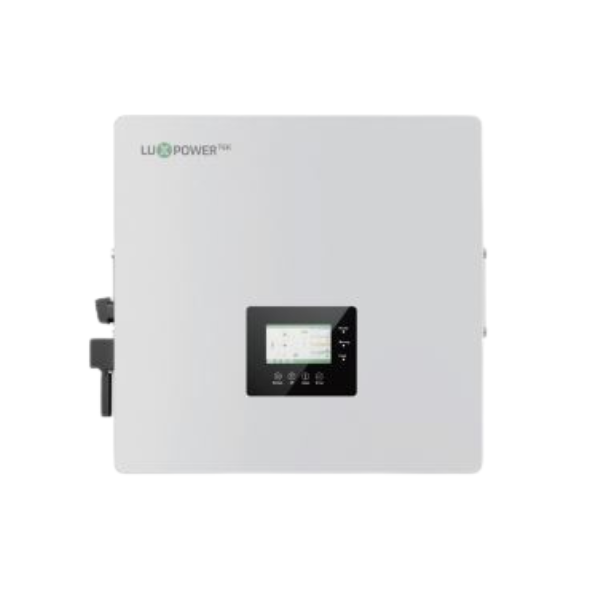

LuxPower 10kW Single Phase Hybrid Inverter GEN-LB-EU-10K

LuxPower GEN-LB-EU 10K Hybrid Inverter

The GEN-LB-EU 10K is a smart hybrid solar inverter, designed to maximize energy efficiency in grid-connected installations and off-grid systems. Its advanced technology allows the integration of solar panels, batteries, and the electrical grid, ensuring an uninterrupted supply with switching times of less than 20ms.

LuxPower GEN-LB-EU 10K Operating Modes

GEN hybrid inverters support several operating modes:

• Self-consumption mode: The solar hybrid inverter will first use solar energy to supply the household load. The excess solar energy will be used to charge the battery. Once the hybrid inverter's battery is fully charged, the excess solar energy can be injected into the grid.
• Forced Charge and Discharge Mode: The inverter will charge or discharge the battery according to the schedule set by the user.
• Priority Charge Mode: The solar energy collected by the hybrid inverter will be used first to charge the battery, then to supply the household load, and finally to inject the excess into the grid. This mode is ideal for areas with unstable power supplies.

System Connection

This is an innovatively designed hybrid solar and energy storage inverter, suitable for installation in on-grid solar systems, off-grid solar systems, and backup systems. The GEN Hybrid enables a smart, programmable, and scheduled solar energy storage system, helping to increase the solar energy self-consumption rate, protect household appliances from grid failures, and balance energy usage strategies to reduce electricity bills.

Parallel Connection

The GEN Hybrid series supports parallel connection, allowing users to easily expand their off-grid power capacity. Thanks to its advanced control method, the parallel system offers several advantages:

1. Up to 10 inverters can be connected.
2. The connection cables do not need to be the same length.

3. Users can connect all inverters to a single large battery bank or to different groups of batteries.

Luxpower GEN 10000W Mobile Monitoring

One ​​of the most striking aspects of Luxpower inverters is their development of the inverter communication system, which includes a Wi-Fi stick as standard and allows mobile monitoring through a mobile application LuxPowerView available for both operating systems Android as iOS.

LuxPower Technical Details GEN-LB-EU 10K

• Output power: 10000W
• Network type: single-phase
• MPPT: 2
• MPPT range: 120-500V
• Compatible batteries: *Related downloads
• Maximum charge and discharge batteries: 210A
• Communication: LCD+RGB, RS485/Wi-Fi/CAN
• Weight: 42,6 kg
• Dimensions: 536 x 556 x 290 mm

 LuxPower GEN-LB-EU 10K Inverter Data Sheet

LuxPower GEN-LB-EU 10K Warranty

The equipment has a 5-year warranty, provided that the following handling recommendations are followed:

 Luxpower GEN-LB-EU 10K Warranty

 Luxpower GEN-LB-EU 10K warranty conditions

LuxPower GEN-LB-EU 10K inverter installation

 LuxPower GEN-LB-EU 10K Inverter User Manual

List of batteries compatible with the LuxPower inverter GEN-LB-EU 10K

 Batteries compatible with LuxPower GEN-LB-EU Inverter 10K

LuxPower inverter CE certificate GEN-LB-EU 10K

UNE Certificate LuxPower Inverter GEN-LB-EU 10K
