LuxPower Hybrid Inverter GEN-LB-EU 6K

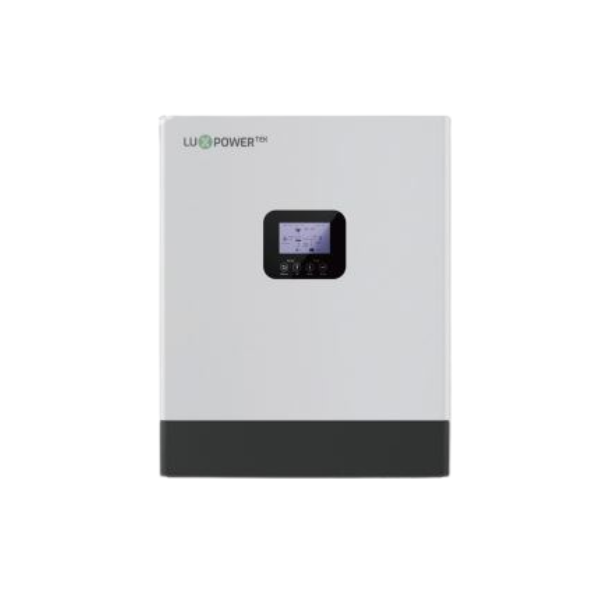

The GEN-LB-EU 6K is an intelligent hybrid solar inverter, designed to maximize energy efficiency in grid-connected installations and off-grid systems. Its advanced technology allows the integration of solar panels, batteries, and the electricity grid, ensuring an uninterrupted power supply with switching times of less than 20ms.

Operating Modes LuxPower GEN-LB-EU 6K

GEN hybrid inverters support various operating modes:

• Self-Consumption Mode: The solar hybrid inverter will first use solar energy to supply the home load. The excess solar energy will be used to charge the battery. Once the hybrid inverter battery is fully charged, the excess solar energy can be injected into the electricity grid.
• Forced Charge and Discharge Mode: The inverter will charge or discharge the battery according to the schedule set by the user.
• Charge Priority Mode: The solar energy collected by the hybrid inverter will first be used to charge the battery, then to supply the home load, and finally to inject the surplus into the grid. This mode is ideal for areas with unstable power supply.

System Connection

This is an innovatively designed solar and energy storage hybrid inverter, capable of being installed in grid-connected (on-grid) solar systems, standalone (off-grid) solar systems, and backup systems. The GEN Hybrid enables an intelligent, programmable, and scheduled solar energy storage system, helping to increase the self-consumption rate of solar energy, protect household appliances against grid failures, and balance the energy usage strategy to reduce electricity bills.

Parallel Connection

The GEN Hybrid series supports the parallel connection function, allowing users to easily expand their off-grid power capacity. Thanks to its advanced control method, the parallel system offers several advantages:

1. Up to 10 inverters can be connected.
2. The connection cables are not required to be the same length.

3. Users can connect all inverters to a single large battery bank or to different battery groups.

Luxpower GEN 6000W Mobile Monitoring

One of the most striking aspects of Luxpower inverters is the development of the inverter's communication system, which includes a standard Wifi stick and allows mobile monitoring through the LuxPowerView mobile application available for both Android and iOS operating systems.

Technical Details LuxPower GEN-LB-EU 6K

• Output Power: 6000W
• Grid Type: Single-phase
• MPPT: 2
• MPPT Range: 150-425V
• Compatible Batteries: *Related Downloads
• Maximum Charge and Discharge Current: 125/140A
• Communication: LCD+RGB, RS485/Wi-Fi/CAN
• Weight: 29 kg
• Dimensions: 487 x 455 x 211.7 mm

Technical Data Sheet LuxPower GEN-LB-EU 6K Inverter

LuxPower GEN-LB-EU 6K Warranty

The equipment has a 5-year warranty, provided that the following handling recommendations are met:
