Sungrow SBR high voltage battery from 9.6 to 102 kWh
High voltage Sungrow brand batteries, modular and expandable at any time. Supports 3 to 8 modules per unit, maximum 4 units in parallel, obtaining a capacity range from 9 to 100 kWh. These lithium batteries can be charged and discharged with a maximum current of 30A. They also have a charge status indicator as well as protection against abnormal voltages and currents.
Dimensions: 625x545x330 mm
Weight: 114 kg
* Technical support not included. Eligible separately here.
Secure payment
Shipping policy
Return policy
Sungrow SBR high voltage battery from 9.6 to 102 kWh
High voltage Sungrow brand batteries, modular and expandable at any time. Supports 3 to 8 modules per unit, maximum 4 units in parallel, obtaining a capacity range from 9 to 100 kWh. These lithium batteries can be charged and discharged with a maximum current of 30A. They also have a charge status indicator as well as protection against abnormal voltages and currents.
Dimensions: 625x545x330 mm
Weight: 114 kg

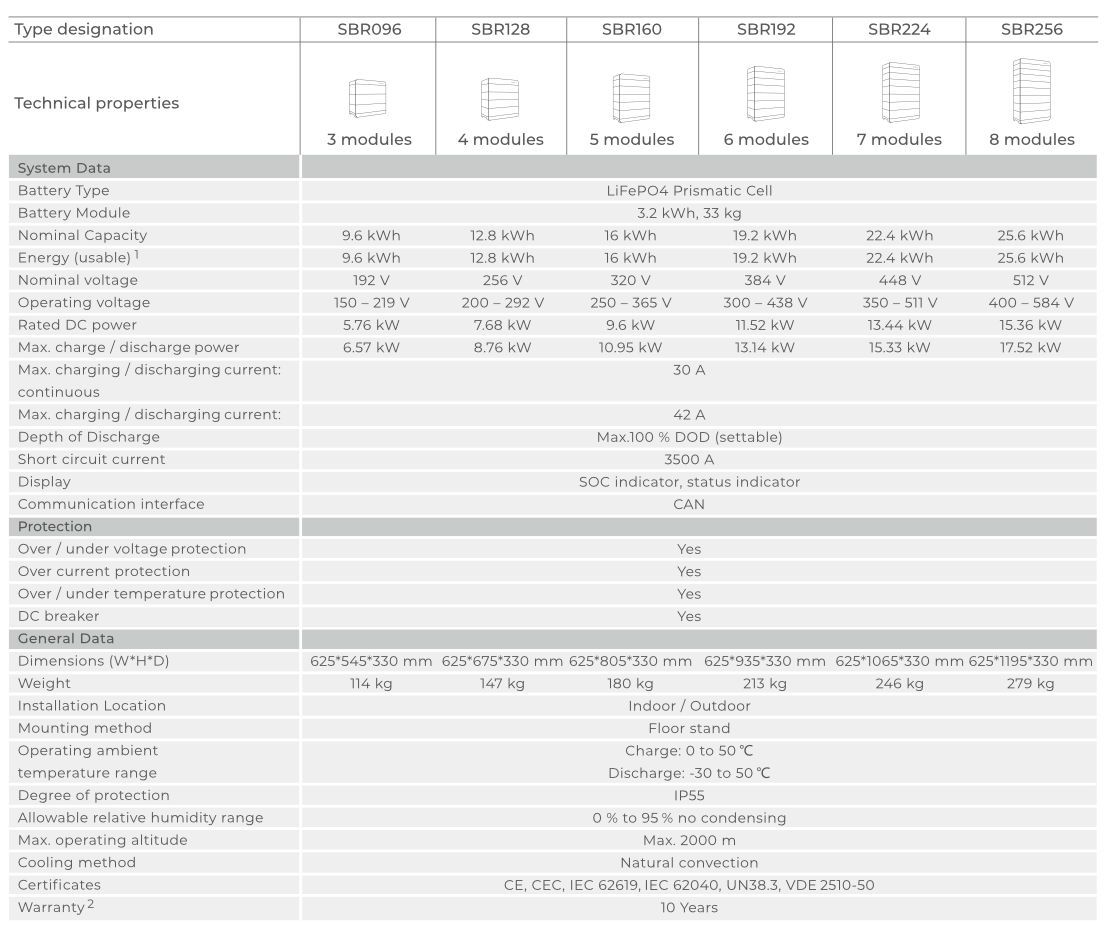

Download Datasheet Sungrow SBR high voltage battery
Download Manual Sungrow SBR high voltage battery
Download Quick Guide installation Sungrow SBR high voltage battery
Sungrow SBR High Voltage 9.6 to 102 kWh Battery Features
Up to 30A continuous charge and discharge current with high efficiency.
ٚ100% usable energy
ٚLithium-ferrophosphate battery
Multi-stage protection design with extensive safety certification.
Lifetime extendable
Supports 3-8 modules per unit, max. 4 units in parallel, capacity range 9-100 kWh
Compact and lightweight, one-person installation
Plug & Play, no cables needed between battery modules
BAT-SG-SBR
High voltage Sungrow brand batteries, modular and expandable at any time. Supports 3 to 8 modules per unit, maximum 4 units in parallel, obtaining a capacity range from 9 to 100 kWh. These lithium batteries can be charged and discharged with a maximum current of 30A. They also have a charge status indicator as well as protection against abnormal voltages and currents.
Dimensions: 625x545x330 mm
Weight: 114 kg
