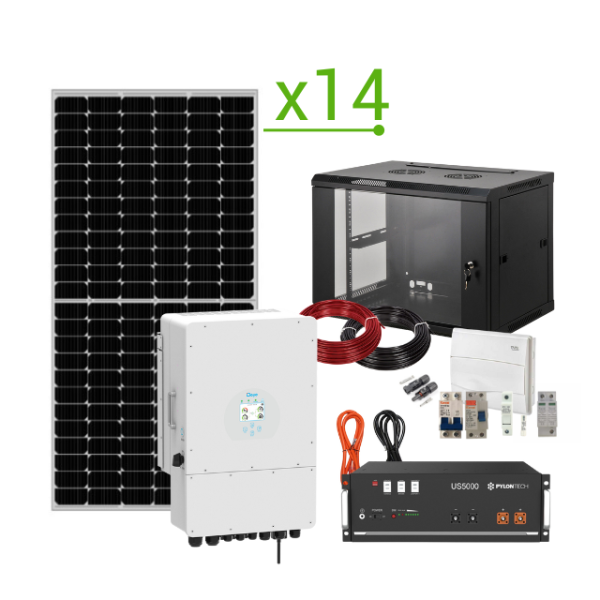

Solar kit 42.42kWh a day and lithium battery 4.8kWh - Deye 6kW SUN-6K-SG05LP1-EU

Deye hybrid inverter, from a world-leading manufacturer of energy storage equipment. The Deye 6kW SUN-6K-SG05LP1-EU-AM2-P unit features integrated full backup, allowing it to combine the energy generated by photovoltaic panels, the energy stored in the battery, and the electrical grid to provide an efficient system that will continue to function even during grid outages. This inverter is suitable for self-consumption installations or installations without a grid connection.

Power:6kW

Wi-Fi + meter included.

Warranty: 10 years

Features of the Deye 6kW SUN-6K-SG05LP1-EU-AM2-P Single-Phase Hybrid Inverter

Deye hybrid inverters are ideal for use in self-consumption installations where storage batteries are used or will be used in the future. They are also ideal for installations without a grid connection or those with a poor connection. The integrated backup function ensures that the home's electrical system continues to function when the grid fails.

This 6kW SUN-6K-SG05LP1-EU-AM2-P device has 2-MPPT, allows grid injection or zero injection and is compatible with the latest 48V lithium batteries on the market.

Download Deye SUN-6K-SG05LP1-EU-AM2-P inverter technical sheet

 Download Deye SUN-6K-SG05LP1-EU-AM2-P inverter user manual

Battery compatible with Deye Hybrid inverter SUN-6K-SG05LP1-EU-AM2-P

This single-phase hybrid inverter from Deye supports lithium batteries to 48V to store excess energy from solar panels, harnessing accumulated energy at night and thus maximizing savings on the electricity bill.

 List of batteries compatible with Deye SUN-6K-SG05LP1-EU-AM2-P inverter

Deye hybrid inverters have a smart load or backup function that, in addition to allowing off-grid operation using only the battery, also helps maximize the system's performance by combining solar panels, batteries, and the electrical grid, minimizing the energy drawn from the grid. and feeding surplus energy back into the grid only when the batteries are charged and there is no energy consumption in the home.

Deye SUN-6K-SG05LP1-EU-AM2-P Inverter Operating Modes

- Off-grid Mode (Installations without grid connection)

Deye hybrid inverters are ideal for homes without grid connection thanks to their integrated backup system and compatibility with most 48V batteries on the market.

- Backup Mode

- Surplus Selling Mode

This Deye inverter is designed for grid injection, allowing you to sell surplus photovoltaic energy to your electricity supplier.

What does the Deye SUN-6K-SG05LP1-EU-AM2-P hybrid inverter include?

- Inverter

- Mounting Panel

- M4x20 Stainless Steel Screws

- AC Connector

- MC4 Connector

- M6x80 Expansion Bolt

- Zero Export Current Sensor

- Wi-Fi Stick

- User Manual user

New Lithium Battery US5000 Pylontech the capacity is 4.8 kWh.

This battery also has a modular design to facilitate the system capacity expansion as needed, as it has a parallel capacity of up to 16 units.This allows you to reach up to 72.96 kWh of accumulation, without having to add a LV Hub.

Its intelligent BMS protects the battery cells and provides a 95% DoD.

IMPORTANTIf you purchase a module Pylontech to expand your battery rack you will not need Kit of cables.If it is the first module you buy, you will need a cable kit Pylontech connect the battery to the solar inverter.

The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.

Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.

2 x 2m long power cables (positive and negative)

Electrical wiring sets Pylontech for the battery-inverter connection

Important: The communication cable between battery and inverter is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5000-48, Voltronic Axpert King 5000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for the inverters Ingecon SUN Storage 6 TL M of which Ingeteam.

2M communications cable for connecting inverters Deye single-phase and three-phase lithium batteries Pylontech. This cable is also compatible with the Ingecon SUN Storage inverters of Ingeteam for use in the manufacture of products falling within heading 8528 [1] Pylontech.

Please check with us if you have any doubts about the compatibility of your equipment with this cable. Not sold separately.

Communication cable Deye a battery Pylontech

19″ Wall-Mount Type Rack Cabinet, 18U, 60X60cm, made of SPCC cold-rolled steel, including:

• Removable door with 5mm thick tempered glass.

• Door can be opened more than 180º.

• Accessible side panels.

• Security lock with key.

• Cable access from the top and bottom of the cabinet.

• Prepared to incorporate two cooling fans.

• Screws and accessories for wall mounting supplied.

• Reliable and rigid construction.

• Dimensions 60 x 60 x 91 cm (w/d/h).

• SUPPLIED DISASSEMBLED

MODEL SUPPLIED WITHOUT ACCESSORIES, SHELVES, FAN, THERMOSTAT…

Rack Cabinet 20U 600X600 for 6 US5000 Modules

Whatever your company's requirements, both in terms of space and capacity, we provide a tailored solution. Whether you are a small business or a multinational, your company will have the perfect solution if you want to install micro data centers, telecommunications systems, networks, educational systems, or broadcasting; whatever you need, with the highest quality and competitive prices.

We have 19” wall cabinets of different heights —from 6U to 20U—, with a depth of 600 mm and 600 mm width, ideal for limited space requirements and/or restrictive environmental conditions.

Main Features of Rack Cabinets

Wall-mounted rack cabinet with standard width of 19 ”(482.6 mm), with ample interior space for components and wiring. Compact and resistant design.

Modular and stackable construction.

Easy access from three sides for installation and maintenance, reducing assembly and management time.

Front door with 4mm tempered glass and keyed security lock. Total opening angle of 180 °.

Easily removable side panels.

Adjustable mounting rails.

This type of rack cabinets can be installed both on walls and on the floor.

Materials and Finishes

Treatment: degreasing and anti-rust paint.

Degree of Protection: IP20.

Thickness of the steel structure: 2 mm.

Material: High quality cold rolled SPCC steel.

Color: Black, smooth and polished finish.

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA

Model: EPR2C040030

Inner surface box 24 elements Legrand

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).
