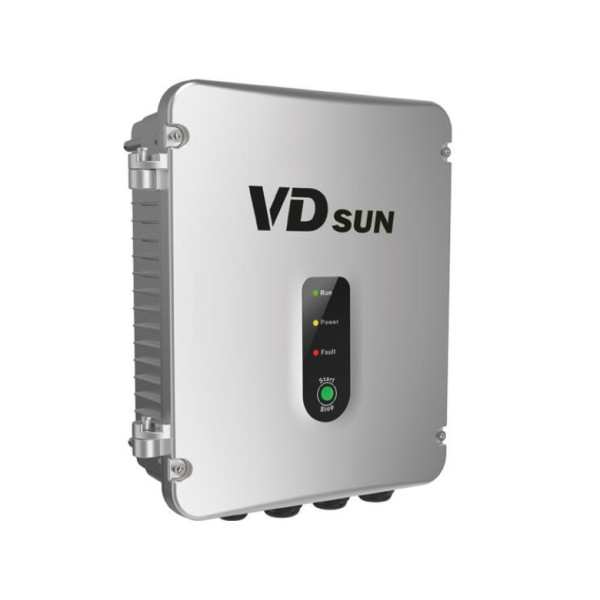

VDSUN 2.2kW Variable Speed Drive
VDSUN variable speed drive for controlling pumps from 0.37 to 2.2 kW in isolated solar pumping systems or hybrid systems with generators or the electrical grid. The input voltage boost of these units makes them particularly suitable for solar pumping in agricultural applications or pools with a limited number of solar panels.
Dimensions: 308x364x151.37mm
Weight: 6.3 Kg
Secure payment
Shipping policy
Return policy
VDSUN
VDSUN variable speed drive for controlling pumps from 0.37 to 2.2 kW in isolated solar pumping systems or hybrid systems with generators or the electrical grid. The input voltage boost of these units makes them particularly suitable for solar pumping in agricultural applications or pools with a limited number of solar panels.
Dimensions: 308x364x151.37mm
Weight: 6.3 Kg

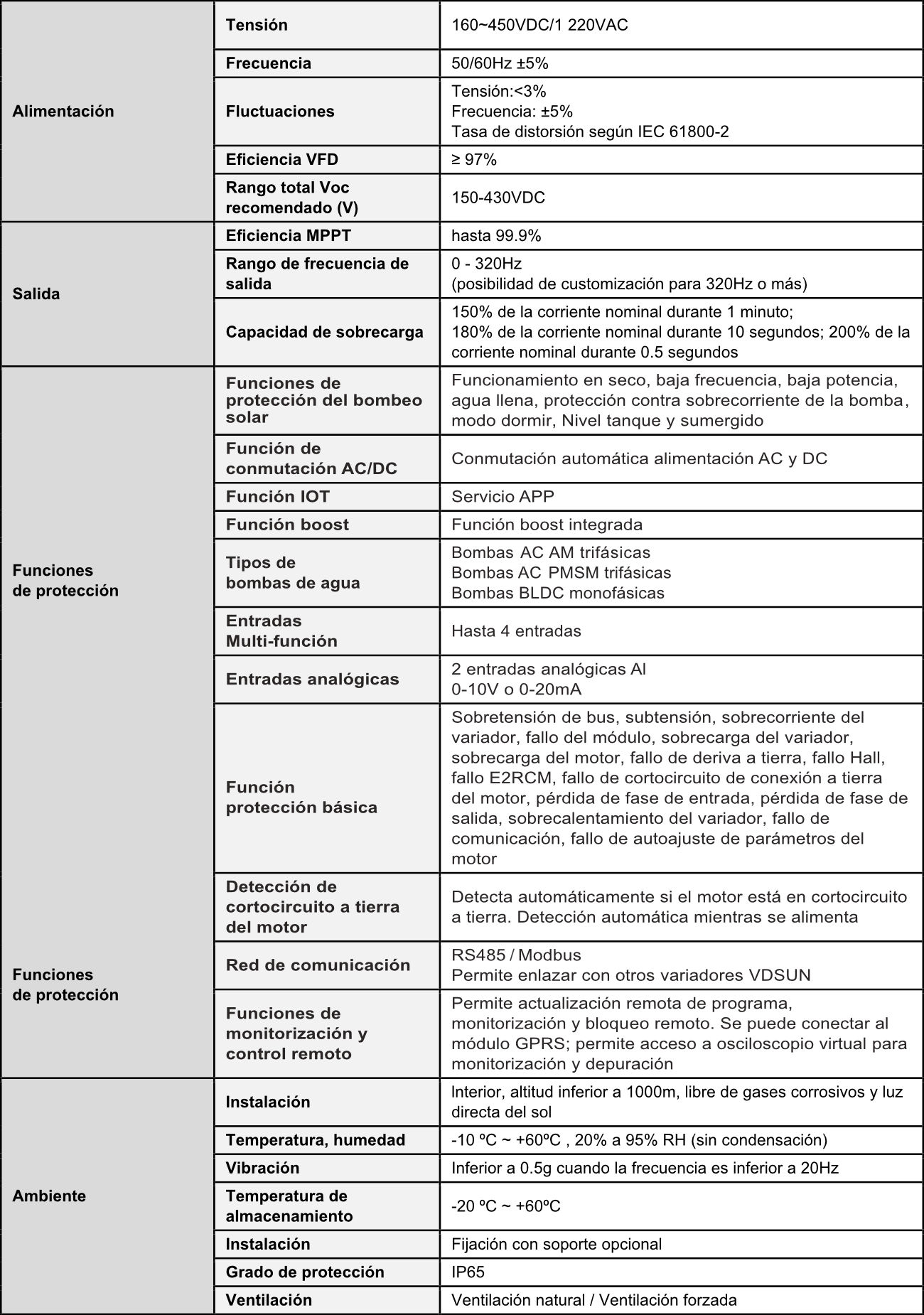

VDSUN inverter technical datasheet
VDSUN Inverter Features
Easy installation and setup
IP65 protection rating (no need for cabinet)
Aluminum enclosure
Modular configuration (Basic and Premium models)
Input voltage boost (reduces number of solar panels)
One-button start/stop
Programmable via external console or GPRS communication
MPPT function and pressure control
Compatible with AC AM three-phase pumps, AC PMSM three-phase pumps, and single-phase BLDC pumps
RS-485/Modbus communication
Monitoring and remote control via APP and web
VDSUN Inverter Technical Specifications
VDSUN 2.2KW
VDSUN variable speed drive for controlling pumps from 0.37 to 2.2 kW in isolated solar pumping systems or hybrid systems with generators or the electrical grid. The input voltage boost of these units makes them particularly suitable for solar pumping in agricultural applications or pools with a limited number of solar panels.
Dimensions: 308x364x151.37mm
Weight: 6.3 Kg
