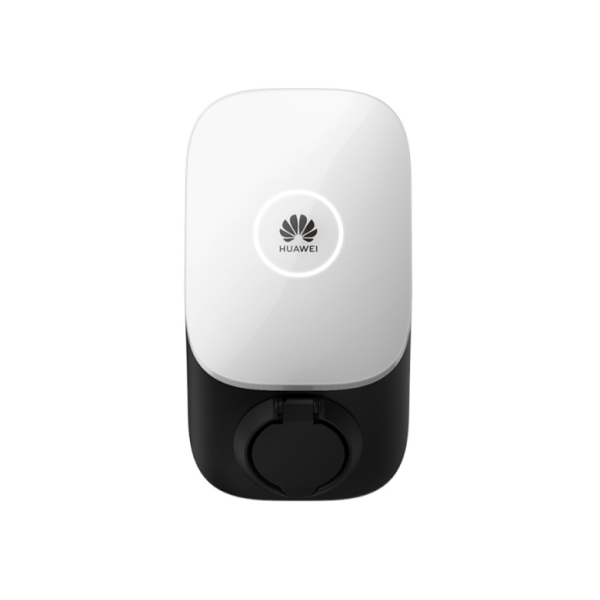

Huawei Smart Charger AC 22kW Type 2 three-phase - SCharger-22KT-S0

Huawei It shall be capable of operating at a voltage not exceeding 300 V

The great advantage of the Smart Charger Huawei is its efficiency, allowing it to harness solar energy from a system Huawei for 100% renewable charging of the electric vehicle.

This V.E. charger has full connectivity thanks to a Wifi communication system, App Smart Charger for charging point management and many other functionalities such as remote power adjustment or charging programming.

 Technical data sheet Huawei It shall be capable of operating at a voltage not exceeding 300 V

 Installation manual Huawei It's called a smart charger

Functionalities of the charging point Huawei Smart charger

Smart Charger from Huawei can be installed as a "charger", ideal for those who do not have a photovoltaic installation with inverter Huawei or "charger and photovoltaic", for which you'll need an inverter Huawei, Wifi dongle and RS485 meter.

Among the highlights of the electric vehicle charger Huawei dynamic load control based on the contracted power is possible.

Smart Charger has different charging modalities including:

- Surplus load: the load is adapted to the generation power of the photovoltaic field at any given moment.

- Scheduled charging: allows the preferred charging time to be defined and photovoltaic surpluses to be managed.

- Normal load: standard load at 7,4 kW or 22 kW

Preferred PV power

Power your car entirely with solar energy.

Make Ev even more green.

Automatic phase change

Automatic switching between one phase and three phases.

More usable green energy.

All in one app

Total control through an app.

E-lock cable against theft.

Dynamic load power

Automatic detection and adjustment.

No worries about overload.

Installation in three steps

Quick setup in 16 minutes.

Maintenance without wiring.

Automatically authenticated

Automatic bluetooth authentication before charging.

Characteristics of the car charger Huawei It's called the SCharger-22KT-S0

- Load up to 7kW/32A single phase or 22kW/32A three phase

- Socket type two

- Supported communication mode: WiFi, Ethernet, RFID, RS485

- Preferential charge of green energy to optimize electricity cost

- Fast charging for urgent travel

- IP 54 for indoor or outdoor installation

- Flexible stage application with photovoltaic or stand-alone system

- Easy-to-use APP with full load control including remote activation, scheduled charging and charging current adjustment

- Adaptive 3-phase to 1-phase green energy load

- Load balance prevents disconnects

How to install the Smart Charger Huawei?
