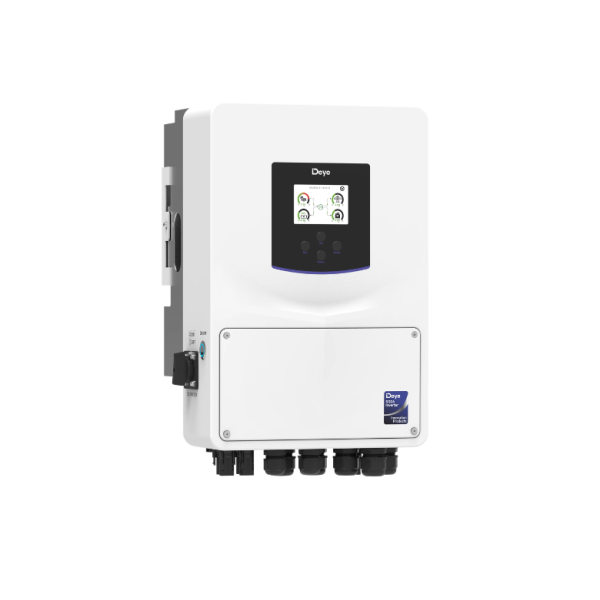

Deye SUN-5K-SG06LP1-EU-BM2 5kW single-phase hybrid inverter

Deye SUN-5K-SG06LP1-EU-BM2 Single-Phase Hybrid Inverter

Take your residential photovoltaic system to the next level with the new Deye SUN-5K-SG06LP1-EU-BM2 single-phase low-voltage hybrid inverter. This highly anticipated Generation 6 (SG06) from Deye redefines efficiency and design in the residential sector, offering an ultra-compact, lightweight, and technologically advanced solution for power outputs of 3kW, 3.6kW, 4kW, 4.6kW, 5kW, and 6kW. Thanks to its native compatibility with 48V batteries (both Lithium and Lead-Acid) and its revamped internal architecture, the Deye SUN-SG06LP1-EU-BM2 guarantees maximum efficiency. of self-consumption of energy and unprecedented versatility.

Main Advantages of the New Deye Generation 6 (Deye SUN-5K-SG06LP1-EU-BM2)

• Ultra-Compact and Lightweight Design (Mechanical Revolution): Unlike previous generations, the SG06 platform drastically reduces the space and weight of the equipment, facilitating a much faster, cleaner, and more aesthetically pleasing wall installation in any home.
• Massive Charge and Discharge Current (Up to 140A): Makes the most of solar energy. It allows for ultra-fast energy delivery or storage to and from your low-voltage (40-60V) battery bank, minimizing dependence on the electrical grid.
• Advanced Grid-Tie Flexibility (AC Couple): Ideal for both new construction and expansions. The Deye BM2 inverter allows AC couplers to upgrade and add batteries to existing solar systems without changing the old inverter.
• Intelligent Load and Generator Management: It features a dedicated input for automatically integrating a backup diesel generator and scheduling up to 6 different battery charge/discharge periods according to electricity tariffs.
• Maximum Parallel Connectivity: Need more power in the future? The SUN-SG06LP1-EU-BM2 model supports the parallel connection of up to 16 units for both grid-tied (on-grid) and fully off-grid (off-grid) operation.

Key Technical Specifications (Deye SUN-5K-SG06LP1-EU-BM2)

• Available Models: SUN-3K / SUN-3.6K / SUN-4K / SUN-4.6K / SUN-5K / SUN-6K-SG06LP1-EU-BM2.
• Battery Voltage Range: 40~60 V (Low Voltage).
• Maximum Charge/Discharge Current: Up to 140A (depending on model).
• MPPT Configuration: 2 integrated MPPT trackers, optimized with a wide voltage range (150V-425V) and high input current, compatible with modern high-power solar panels and large cells.
• Color LCD Touchscreen: Intuitive touchscreen graphical interface with IP65 protection rating, suitable for both indoor and protected outdoor installations.
• Integrated Premium Electrical Protection: * Class II surge protection for both DC and AC.
• Protection against reverse polarity in DC, short circuits in AC, overcurrents and optional AFCI function against electrical arcs.

Documentation Deye SUN-5K-SG06LP1-EU-BM2

Deye SUN-5K-SG06LP1-EU-BM2 technical sheet

Installation manual Deye SUN-5K-SG06LP1-EU-BM2
