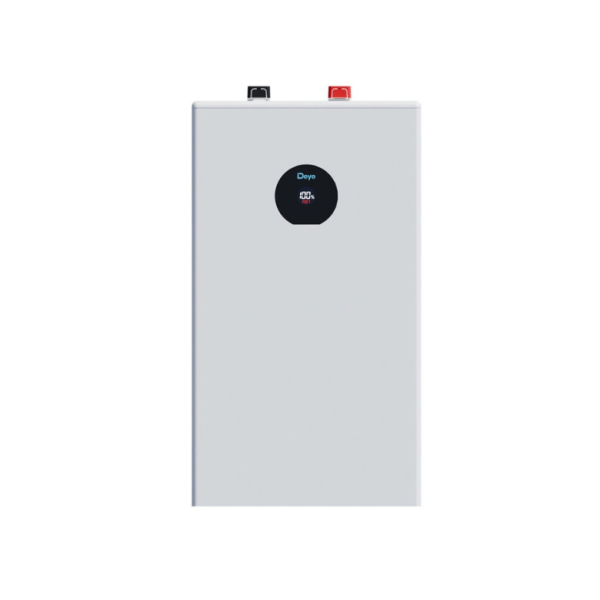

Deye 16kWh SE-F16 LiFePO4 Battery

Deye 16kWh SE-F16 LiFePO4 Lithium Battery

The Deye 16kWh SE-F16 LiFePO4 Lithium Battery is a low-voltage (LV) energy storage system designed to offer high performance, maximum safety, and high scalability in residential and commercial applications. It incorporates LiFePO4 (lithium iron phosphate) technology, renowned for its thermal stability and long lifespan, exceeding 6,000 charge and discharge cycles to guarantee years of reliable operation.

It offers a nominal usable energy of 16 kWh with a 90% round-trip efficiency and an output power of up to 8 kW, ensuring a stable supply even under demanding conditions. Its modular architecture allows up to 32 units to be connected in parallel, reaching a total capacity of 512 kWh, making it a fully scalable solution.

The SE-F16 integrates a 160 A circuit breaker for both charging and discharging, providing greater operational safety. Furthermore, it allows remote monitoring and firmware updates via the Deye inverter, facilitating intelligent system management. It operates within a wide temperature range (charging from 0°C to 55°C and discharging from -20°C to 55°C), features IP20 protection for indoor use, and has a humidity tolerance of up to 95%. Certified under UN38.3 / CE / CB, it is a robust, safe solution prepared for current and future energy demands.

What does the Deye 16kWh SE-F16 Lithium Battery include?

• Battery Module ×1
• RS485 Communication Cable ×1
• Grounding wire ×1
• Fixed supports ×2
• Positive battery cable ×1
• Negative battery cable ×1
• Expansion screws (M8×70) ×4
• Screws (M6) ×4
• User manual ×1
• Wall mounting plate ×1
• Back plate ×1
• Screws (M8) ×2
• Dust cover ×1

Deye 16kwh SE-F16 Lithium battery documentation

User Manual Deye 16kwh SE-F16 LiFePO4 Lithium Battery

CE Certificate Deye 16kwh SE-F16 LiFePO4 Lithium Battery

Deye 16kwh SE-F16 LiFePO4 Lithium Battery Technical Data Sheet
